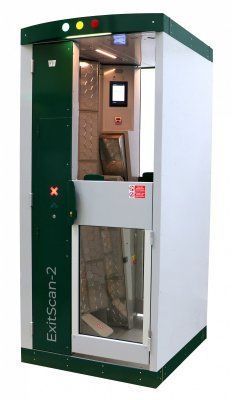

Contamination monitoring system ExitScan-2

fixedwith touchscreen

Short description
Full-body contamination monitor for personnel exiting radiation-controlled areas. Detects alpha, beta and gamma emitting radionuclides depending on fitted detectors. Designed for high throughput and easy integration with host systems.

Key Features

• Scintillation, gasless detectors with integrated processing electronics for easy calibration and rapid on-site replacement
• Detector variants for alpha, beta and gamma contamination
• Comprehensive coverage: full body front and back, both sides of hands and feet, outsides of legs and arms
• Tight hand-detector geometry for high-efficiency alpha measurement
• Dynamic algorithm to optimise measuring time and maximise personnel throughput
• User interface with touchscreen, multiple colour displays and voice prompts
• Wide range of configurations, accessories and language versions
• Optional ID card/chip reader for user identification
• Standard Ethernet interface for host communication and relay outputs for external control (alarms, doors, turnstiles)
• Calibration mode and remote input for emergency/no-measurement operation
• Definable scanning areas supporting multiple detectors with common evaluation
• Easy detector access for maintenance; common spare parts with other VF monitors

Description
The ExitScan-2 is a two-step full-body personnel contamination monitor designed to check personnel leaving radiation-controlled areas for radioactive contamination. It verifies the presence of alpha, beta and gamma emitting radionuclides according to the detectors installed. The system combines high detection coverage with fast measurement cycles and flexible configuration to suit nuclear facilities, waste management and industrial sites.

Applications

• Nuclear facilities
• Waste management
• Non-nuclear industry

Technical specifications

• Product code: ExitScan-2
• Monitor type: Two-step full-body personnel contamination monitor
• Detects: alpha, beta and gamma emitting radionuclides (depending on fitted detectors)
• Detectors: Scintillation, gasless detectors with integrated processing electronics
• Coverage: Full body front and back; both sides of hands and feet; outsides of legs and arms
• Hand detection: Tight geometry for high-efficiency alpha measurement
• Measuring optimisation: Dynamic algorithm to maximise throughput
• Interface: Touchscreen, multiple colour displays and voice prompts; multi-language options
• User ID: Optional ID card/chip reader
• Communications: Standard Ethernet interface for host communication
• Parameter management: Quick selection from stored presets
• Outputs: Relay contacts for external control (alarms, doors, turnstiles)
• Calibration mode: For quick verification of correct operation
• Remote control: Input for emergency/no-measurement modes
• Scanning areas: Definable areas with multiple detectors and common evaluation
• Maintenance: Easy detector access and replacement; common spare parts with other VF monitors
