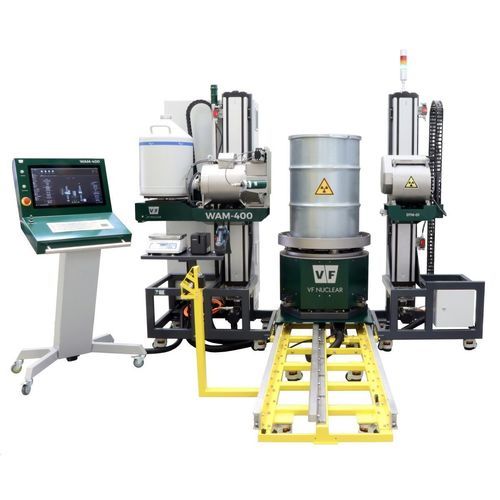

Waste contamination detector WAM-400

for waste containers

Product overview
The WAM-400 Waste Assay Monitor is a tomographic gamma scanner (TGS) designed for the quantitative and qualitative tomographic characterization of radioactive waste contained in drums. The system evaluates activity and material density distributions and can be configured to meet specific customer handling and measurement requirements.

Applications

• Nuclear facilities
• Waste management

Key Features

• Monitor configurable to customer requirements
• Tomographic analysis of activity and material density distribution in the drum
• Peak attenuation correction
• Integrated drum weighing
• Optional Fast-Scan function
• Detector available with optional adjustable collimator
• Measurement of material density inside the waste drum
• Integrated control software

Description
The WAM-400 monitors perform quantitative and qualitative characterization of radioactive waste stored in drums with overall activity from 100 kBq to 30 TBq (example range for Cs-137). As a tomographic gamma scanner (TGS), the WAM-400 reconstructs the spatial distribution of radioactivity and material density across all drum regions. The system architecture allows customization for different drum sizes, waste types, activity ranges and handling constraints.

Characteristics / Technical specifications

• Model: WAM-400
• Type: Tomographic gamma scanner (TGS)
• Intended use: Quantitative and qualitative characterization of radioactive waste in drums; free release measurements
• Activity measurement range (example for Cs-137): from 100 kBq to 30 TBq
• Tomographic analysis of activity distribution and material density within the drum
• Peak attenuation correction included
• Integrated drum weighing
• Optional Fast-Scan function
• Detector with optional adjustable collimator
• Integrated control software
• Monitor configurable and customizable to customer requirements and drum handling needs
