Radiation monitoring system FloorScan-525

contamination

Product overview

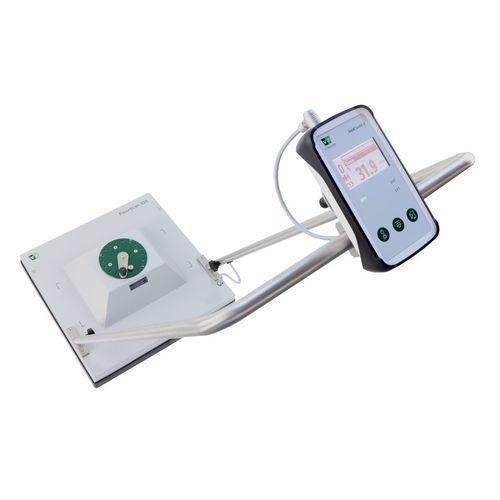

Portable monitor for measurement and indication of floor surface contamination by alpha-, beta- and gamma-emitting radionuclides. Designed for on-site surveys and routine monitoring in radiation-controlled areas.

Applications

• Nuclear facilities
• Waste management
• Ionizing radiation metrology
• Nuclear medicine
• Non-nuclear industry

Key Features

• Gasless scintillation detectors
• Detector variants optimized for alpha, beta and gamma measurements
• Available in single- or dual-detector versions
• Portable, user-friendly design
• High detection efficiency and excellent response uniformity
• Rechargeable battery for extended operation
• Two pre-settable alarm levels

Description
The FloorScan series floor contamination monitors are intended for measurement of surface contamination by alpha-, beta- and gamma-emitting radionuclides on floors. The monitors are suitable for use in nuclear power plants, radiochemical plants, research reactors, PET centres and similar facilities.
The device is available in two sizes:

• Single-detector variant: detection area 525 cm² (FloorScan-525 series)
• Dual-detector variant: detection area 1050 cm² (FloorScan-1050 series)

Technical specifications

• Model: FloorScan-525 (single-detector) and FloorScan-1050 (dual-detector)
• Measured quantity: surface contamination on floors by alpha, beta and gamma emitting radionuclides
• Detector type: gasless scintillation detectors
• Detector configuration: single (525 cm²) or dual (1050 cm²)
• Detection: detector types optimized for alpha, beta and gamma measurements
• Alarms: two pre-settable alarm levels
• Power supply: rechargeable battery for extended operation
• Design: portable monitor for on-site floor surveys
• Performance: high detection efficiency and excellent uniformity
