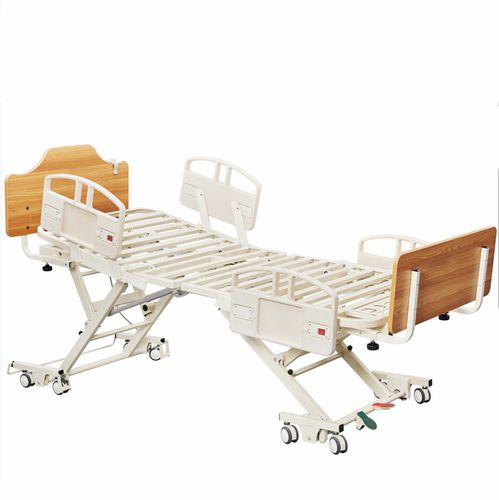

Intensive care bed BES-Q22

electricTrendelenburgheight-adjustable

Features: Rises from a low of 8.5" to a high of 25". Has 4 DC Motors that provide elevation, head and foot adjustment. Has a sturdy slat deck providing a solid sleep surface and mattress ventilation. Is 35" wide by 80" long. Locking Casters Can be moved in any position. Easy to clean and disinfect Height - Low Position - 195mm Height - High Position - 625mm Weight Capacity - 450LBS Bed Dimensions - Min2100*900*195mm Width & Length Expansion: max length 2430mm no width expansion Motors: 4 DC Motors, The overall lifting motor loading 8000N, the back motor and leg motor loading 6000N，input:24-29VDC max5.5A Functions:Bed lifting, back plate lifting, leg plate lifting, front and rear tilting Trendelenburg Positioning:Front and rear tilt angle 15.5° Comfort Chair:Head deck lifting angle 60° Leg/Foot Lift:Maximum hip-knee angle 40° Power Frequency:120VAC-5.0Amps-60Hz Warranty:10 Years on Frame, 15 Years on Welds, 2 Years on Electrical Caster Base:3-inch casters, 2 head casters with brakes, directional limit, and foot pedal brakes Battery Backup Option:24V1.3A Lead acid battery,Battery backup warranty for 12 months
