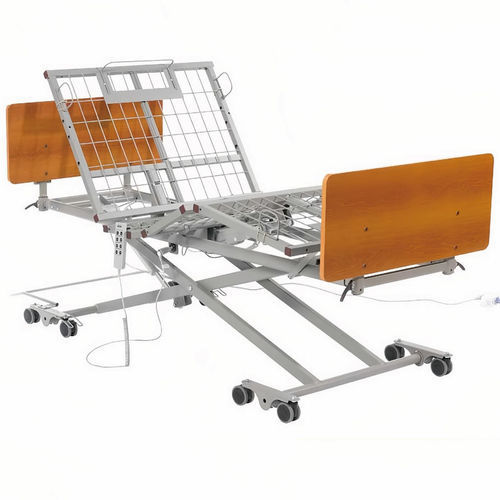

Intensive care bed BES-Q20

electricheight-adjustable4-section

Standard Drive Bed for Long Term Care Features: 450 lbs. weight capacity,Resident Weight 425 lbs Best in class heightrange 7.8"to 30'' Integrated 76"and 80" length extension Eight (8) Function Handheld Pendant Controlincludes Auto Contour 3Dc Motors keeps bedlevel with true vertical lift Four sealed bearingsfor smooth/quiet ifting Eight 3" Heavy Duty casters roll at anyheight,4locking,2 caster guide locks Fixed wall bumper Options: Assist Rails, Assist Bars Bed ends,two styles and three wood grain laminate colors Height-Low Position:198mm Height-High Position:760mm Weight Capacity:450lbs Bed Dimensions:1955×912×198mm Motors: 3 DC Motors, The overalliting motor loading 8000N, the back motor loading 5000N, and the leg motor loading 3500N,Input Voltage:100-240VAC,50/60 Hz Deck Style:Steel pipe welding Functions:Bed lifting, back plate lifting,leg plate lifting Comfort Chair:Head deck lifting angle 60° Leg/Foot Lift:Maximum hip-knee angle 30 Warranty:10 Years on Frame,15 Years on Welds,2 Years on Electrical Caster Base:3 inch casters,2 head casters with brake,and 2 without brakes.With directional limit,2 foot casters with brakes and without brakes
