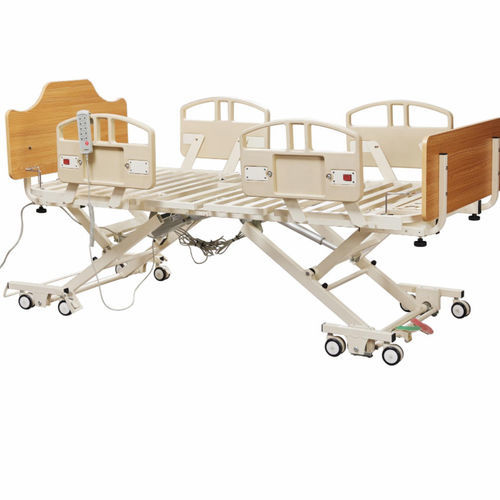

Intensive care bed BES-Q23

electricTrendelenburg

FEATURES: • Travels from a low of 7” to a convenient high height of 30” • Center step safety lock • 600 lb. safe working load • Self-leveling motors • 4 Year warranty on electronics and 15 year warranty on bed deck and frame • Swivel locking casters and flip down caster guides • Baseboard bumper • 10 Button handset • Meets 60601-2-52 Height - Low Position 190mm Height - High Position 750mm Weight Capacity 600lbs Bed Dimensions Min2180*900*190mm Width & Length Expansion : Max length 2360mm max width 1160mm mattress max length 2200mm max width 1000mm Motors:4 DC Motors,The overall lifting motor loading 6000N, the back motor and leg motor loading 5000N， input:24VDC Deck Style:Steel pipe welding Functions:Bed lifting, back plate lifting, leg plate lifting, front and rear tilting Motor brand:4 Brands as option Trendelenburg Positioning:Front and rear tilt angle 16.5° Comfort Chair:Head deck lifting angle 65° Leg/Foot Lift:Maximum hip-knee angle 34° Warranty:10 Years on Frame, 15 Years on Welds, 2 Years on Electrical Caster Base:3-inch casters, 2 head casters with brakes, directional limit, and foot pedal brakes
