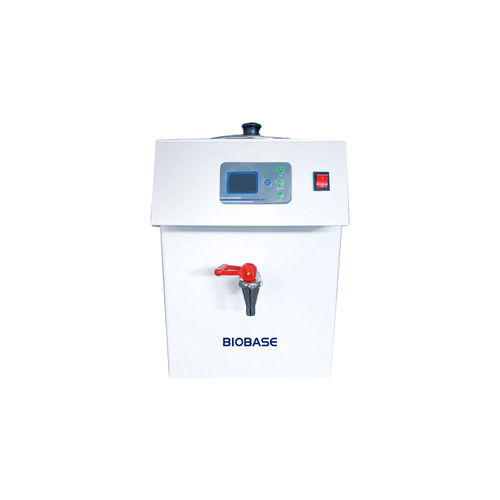

Automatic paraffin dispenser BK-RLY

fully automatedlaboratoryfor research

Introduction
The Paraffin Dispenser BK-RLY is a precision instrument designed for controlled dispensing of paraffin wax in histology, pathology and clinical laboratory workflows.

General information

• Brand: BIOBASE
• Product origin: China
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BK-RLY

Features

• LCD display for real-time heating status.
• New heating element for fast heating, energy efficiency and reliable operation.
• Paraffin valve with intelligent heating control to ensure smooth wax flow.
• Imported integrated temperature measuring block for high precision and stable performance.
• Memory and automatic recovery function: saves preset temperature after operation.
• Fully computerized automatic control program with intelligent digital temperature controller and real-time temperature display.

Technical specifications

• Model: BK-RLY
• Capacity: 12L
• Temperature range: RT ~ 100℃
• Temperature precision: ±1℃
• Power consumption: 1000W
• Power supply: Standard 220V, 50/60Hz; Optional 110V, 50/60Hz
• External size (W×D×H): 330×430×550 mm
• Net weight: 14 kg
• Packing size (W×D×H): 440×560×730 mm
• Gross weight: 29 kg

Applications

• Histology and pathology laboratories
• Clinical and research laboratories
• Paraffin embedding and slide preparation workflows
• Industrial and QA laboratories handling wax-based processes
