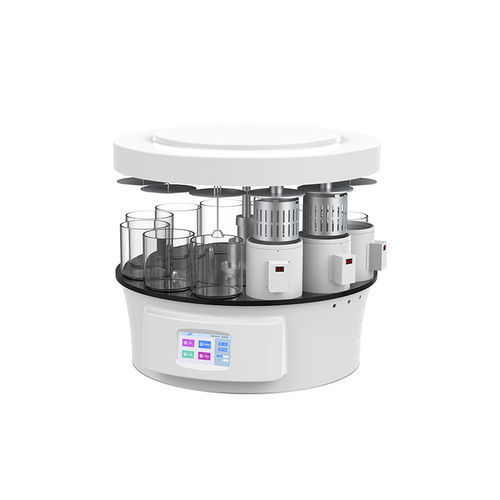

Manual sample processor BK-TS6

automatedembeddingdehydration

Product Introduction
This automated tissue processor programmatically controls the immersion of human, animal, or plant tissue samples in solvents for standardized histological processing including dehydration, clearing, and paraffin infiltration as critical pre-analytical steps for pathological examination.

Features

• The device has a high-definition color LCD touch screen and is programmable for 20 routines, simplifying operation and monitoring.
• It automates the entire process from sample transfer to dehydration, reducing manual work and enhancing efficiency.
• With an organizational basket capacity of 100 embedding cassettes, it can be upgraded to a double-basket configuration, enabling processing of up to 200 cassettes.
• Powered by a high-performance AC constant-speed motor, it ensures stable and quiet operation with high torque for accurate dehydration.
• The permanent magnet synchronous motor facilitates thorough tissue-solvent and wax mixing, ensuring effective dehydration.
• The wax tank features a digital constant-temperature control system with high precision and an electrode-oxidized inner surface for anti-pollution and corrosion resistance.
• An activated carbon filter and exhaust system minimize air pollution, and a vacuum extraction device enhances tissue permeation and dehydration.

Technical Parameters
Model: BK-TS6
Cup Number: 12pcs (9pcs reagent cup, 3pcs paraffin cup)
Single Cup Capacity: 2300ml
Single Cup Processing Time: 0~99h59min
Single Paraffin Cup Capacity: 1800ml
Agitation Frequency: 5min/time
Dehydration Basket Size: Φ127*110mm
Dehydration Basket Capacity: 100 cassettes
Program Storage: 20 sets
Noise: ≤60dB(A)
Power Consumption: 400W
Power Supply: AC220V, 50/60Hz (Standard); AC110V, 60Hz (Optional)
Standard Accessories: Dehydration Basket*1; Reagent cups*9; Paraffin cups*3; Activated carbon bag*1
Optional Accessories: Dehydration Baskets*2
External Size (W*D*H): Φ800*630~760mm
Package Size (W*D*H): Main instrument: 940*940*820mm; Reagent bottle: 470*640*570mm
Net Weight: 75kg
Gross Weight: Main instrument: 100kg; Reagent bottle: 32kg

Characteristics / Technical Specifications

• Programmable for 20 routines
• High-definition color LCD touch screen
• Automated sample transfer and dehydration
• Basket capacity: 100 cassettes (upgradable to 200)
• AC constant-speed motor for stable operation
• Permanent magnet synchronous motor for mixing
• Digital constant-temperature wax tank
• Anti-pollution and corrosion-resistant design
• Activated carbon filter and exhaust system
• Vacuum extraction for enhanced tissue permeation
• Noise level: ≤60dB(A)
• Power consumption: 400W
• Power supply: AC220V/110V, 50/60Hz
• Net weight: 75kg
