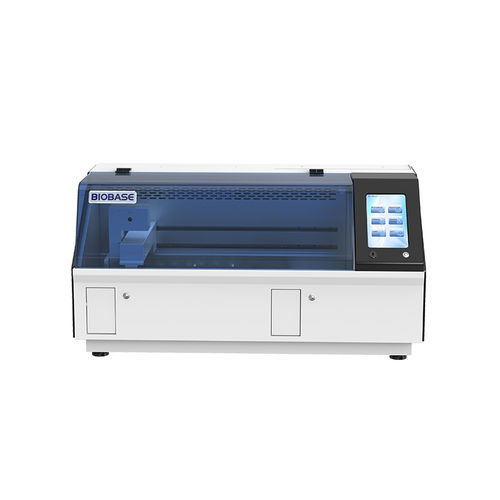

Automatic sample preparation system BK-RS3

automatedfully automatedfor histology

Overview:
The BK-RS3 automated tissue stainer integrates a sample-transfer system and a staining module to automate slide processing (washing, staining, drying). It displays real-time operational data for operator control and is designed for routine histology, pathology and research labs for automated staining of paraffin and frozen sections (e.g., H&E, Pap).

Product information:
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BK-RS3

Key features:

• High-definition color LCD touch screen with Chinese/English interface switching for intuitive operation.
• Stain quality control and AAT function to adjust staining time based on usage for consistent results.
• Audio-visual alerts and automatic screen/LED light control for safe operation.
• Support for multiple staining methods (e.g., H&E, Pap), multiple programs and an open reagent system.
• USB port for firmware/file updates and data export.
• Program-controlled protections and infrared detection to prevent specimen damage and guide operation.
• Automatic water-supply adjustment during runs; rear water-pressure valve for cleaning needs.
• Fully automated workflow from transfer to staining and washing to improve laboratory throughput.
• Capacity: up to 30 slides per rack and support for 15 stored programs.
• Hydrophobic racks to reduce reagent carry-over and cross-contamination; tank agitation to minimize residue.
• Exhaust monitoring with activated carbon filtration to limit airborne contaminants.

Technical parameters:
Model: BK-RS3
Cup number: 26
Reagent stations: 19
Washing stations: 4
Oven chamber: 1
Single cup capacity: 380 ml
Single cup processing time: 0~59min59s
Oven temperature range: RT~70℃
Loading capacity: Up to 15 staining racks
Slides per rack: 30
Loading/unloading stations: 1/1
Programs storage: 15
Noise: ≤60 dB(A)
Power consumption: 400 W
Power supply: AC220V, 50/60Hz (standard); AC110V, 60Hz (optional)
Standard accessories: reagent cups x19; washing cups x4; staining racks x10; inlet pipe assembly x1; PVC water pipe 4 m; ventilation pipe x1; activated carbon filter x1
External size (W*D*H): 1200*640*600 mm
Package size (W*D*H): 1350*780*830 mm
Net weight: 110 kg
Gross weight: 140 kg

Specifications (summary):

• Model: BK-RS3
• Capacity: up to 15 racks × 30 slides/rack
• Reagent stations: 19; washing stations: 4
• Single cup: 380 ml; processing time per cup: up to 59min59s
• Oven temp: RT to 70℃; power: 400 W; noise ≤60 dB(A)
• Power options: AC220V 50/60Hz (standard), AC110V 60Hz (optional)
