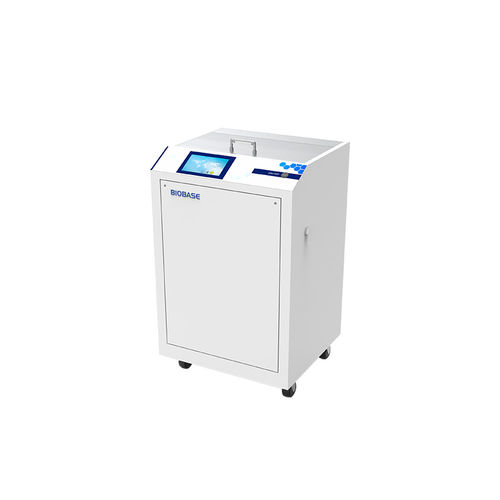

Blood thawing system BJPX-PT series

serumplasmawhole blood

Introduction
The BJPX-PT series blood thaw machine is designed for blood centers, hospital transfusion departments and blood product manufacturing units. It uses microcomputer control and digital temperature display to provide controlled, reproducible thawing of frozen blood components and biological products for clinical and blood bank use.

Key features

• Touchscreen interface with real-time temperature curve display.
• Multiple thawing modes to handle frozen plasma, platelets and other blood products of varying volumes.
• Traceability and data logging: records thaw start/end times and temperature data for each cycle.
• Double circulation system for uniform temperature distribution to reduce fibrin precipitation and protect plasma constituents.
• Removable water tank for routine deep cleaning and disinfection.
• Optional barcode/QR code scanner for bag-level tracking (optional).
• Automatic standby water refill and one-key cleaning functions available on BJPX-PT12 and BJPX-PT24.
• Optional isolated-water configuration supports rapid switching between dry and wet thawing and use of medical composite waterproof thaw bags.

Technical parameters
Model: BJPX-PT6 | BJPX-PT12 | BJPX-PT24
Thawing type: Standard: Water-bath; Optional: Isolated water type
Temperature range: 37.0 ± 3.0 ℃
Temperature resolution: ±0.1 ℃
Water storage capacity: 20 kg ±5% | 58 kg ±5% | 98 kg ±5%
Max thawing quantity: 6 pcs | 12 pcs | 24 pcs
Typical thawing time: 10–15 min
Operating ambient temperature: 18 ℃–30 ℃
Power consumption: 1000VA | 2000VA | 3600VA
Power supply: Standard: AC220V 50/60Hz; Optional: AC110V 50/60Hz (external transformer)
External size (W*D*H): 550*500*470 mm | 600*540*970 mm | 720*600*990 mm
Package size (W*D*H): 670*620*695 mm | 744*714*1200 mm | 860*745*1210 mm
Net weight: 25 kg | 55 kg | 80 kg
Gross weight: 42 kg | 75 kg | 105 kg

Product information

• Brand: BIOBASE
• Origin: CHINA
• Lead time: Within 7 days
• Supply capacity: Factory direct
• Optional functions: code scanner for traceability, automatic water refill and one-key cleaning (PT12/PT24), dual dry/wet thawing and waterproof medical composite thaw bag (isolated-water option)
