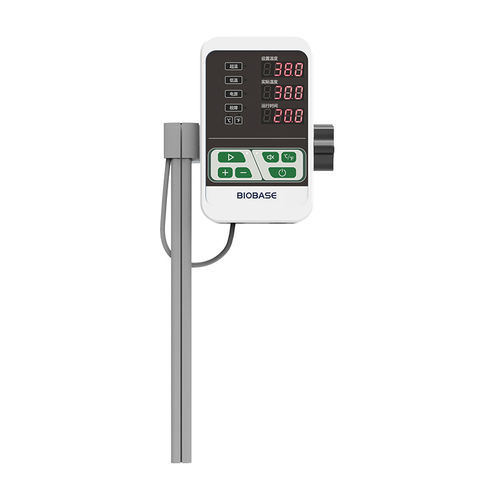

Blood warmer BK-TW series

Introduction:By heating the continuous flow of liquid, heat in the heat exchanger is transferred to the liquid inside the infusion tubing to raise its temperature. The device does not come into contact with the liquid. Not for warming analgesics, chemotherapy drugs, insulin or other medications.

Key information:

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BK-TW201, BK-TW101, BK-TW102

Features:

• Temperature accuracy of the instrument: ±0.1℃.
• Preheating time ≤2 minutes for rapid start-up.
• Door-open alarm and high/low temperature alarms that trigger when monitored temperature deviates 0.5℃ from setpoint, with flashing alarm light and audible beep (BK-TW102).
• High-temperature alarm, low-temperature alarm, system error alarm, overtime alarm and heating prompts (BK-TW101/201).
• Ingress protection: IPX I (vertical water drops have no harmful effects).
• Dual hardware and software triple temperature protection for safe operation.
• Operational noise level ≤65 dB(A).
• Selectable temperature units: °C / °F.
• Medical-grade heated silicone tubing wraps the infusion line to deliver effective temperature directly to the patient; multiple tube diameters and lengths available (BK-TW101/201).

Technical Parameters:
Model - BK-TW201 | BK-TW101 | BK-TW102
Display - LCD display | LCD display | LED display
Temp. Range - 32~42℃ | 32~42℃ | RT+5~45℃
Temp. Resolution - 0.1℃ (all models)
Temp. Fluctuation - ±0.5℃ (all models)
Temp. Uniformity - / | / | ±1.0℃
Preheating Time - ≤2min | ≤2min | ≤2min (From 25±2℃ to 35℃)
Environment Temperature - 5~40℃ | 5~40℃ | 5~30℃
Temp. Error - ±0.5℃ | ±0.5℃ | ±1.0℃
Timing Range - 0~99h/Continuous (all models)
Consumption - 180W | 120W | 85W
Power Supply - AC100~240V, 50/60Hz (all models)
External Size (W*D*H) - 104*45*170mm | 94*45*170mm | 77*35*177mm
Packing Size (W*D*H) - 355*260*230mm | 355*260*230mm | 250*205*100mm
Net Weight - 0.8kg | 0.7kg | 0.5kg
Gross Weight - 2.0kg | 1.9kg | 1.1kg

Technical specifications:

• Models: BK-TW201, BK-TW101, BK-TW102 (BK-TW series).
• Temperature accuracy: ±0.1℃; resolution 0.1℃.
• Temperature range: BK-TW201/BK-TW101: 32~42℃; BK-TW102: RT+5~45℃.
• Temperature fluctuation: ±0.5℃; uniformity ±1.0℃ (BK-TW102).
• Preheating time: ≤2 minutes.
• Power consumption: 180W / 120W / 85W depending on model.
• Power supply: AC100~240V, 50/60Hz.
• Protection level: IPX I.
• Noise level: ≤65 dB(A).
• Timing: 0~99h or continuous.
• Safety: dual hardware and software triple temperature protection.
• Medical-grade heated silicone tubing available in various diameters and lengths (BK-TW101/201).
