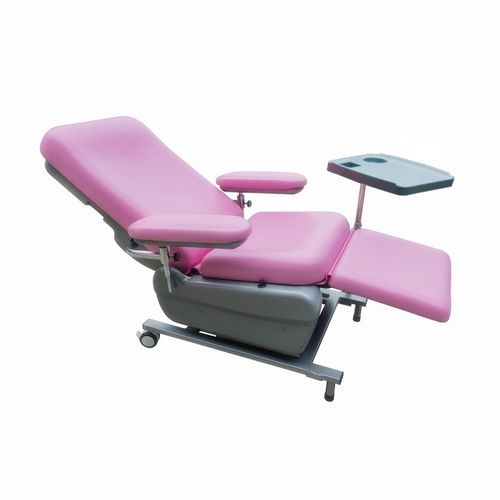

Electric blood donor chair BK-BC100 series

manualnot specifiedergonomic

Introduction
The BIOBASE BK-BC100 / BK-BC100A phlebotomy chair is designed for clinical blood collection and blood bank use. It provides stable positioning, adjustable support for venipuncture and clinical procedures, and materials suitable for routine medical cleaning and disinfection.

Basic information
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BK-BC100, BK-BC100A

Key features

• Available in manual (BK-BC100) or electric adjustment (BK-BC100A) to match clinic workflow.
• Frame made of high-strength fibrous material with multi-layer paint for long service life and simplified surface cleaning.
• Ergonomic, donor-oriented layout reduces movement during procedures and supports patient comfort and safety.
• Seat and mattress in medical-grade molded polyurethane foam with leather-like covering — easy to disinfect, anti-static and stain-resistant.
• Armrests with swing-out function and adjustable travel to facilitate access for phlebotomy and IV procedures.

Technical parameters

• Model: BK-BC100 / BK-BC100A
• Seat section size: 1800 × 580 mm
• Seat section height: 480 mm
• Backing board turning angle: 0–70°
• Chair backward/forward tilt angle: 8°–15°
• Leg plate turning angle: 0–90°
• Handrail swing-out angle: 0°–45°; handrail moving distance: 100 mm; handrail board size: 500 × 160 mm
• Lifting speed (BK-BC100A): 3–25 mm/s
• Power supply (BK-BC100A): AC110/220V ±10%, 50/60Hz
• Reading lamp power (BK-BC100A): 60 W
• Load capacity: 220 kg

Accessories

• Standard accessories: hand operation, handrail rack, small table
• Optional accessories: LED hose-type reading lamp, movable assistant desk, soft velvet cover

Packaging & weight

• Packing size (W × D × H): 1500 × 780 × 600 mm
• Gross weight: 65 kg (BK-BC100); 75 kg (BK-BC100A)
