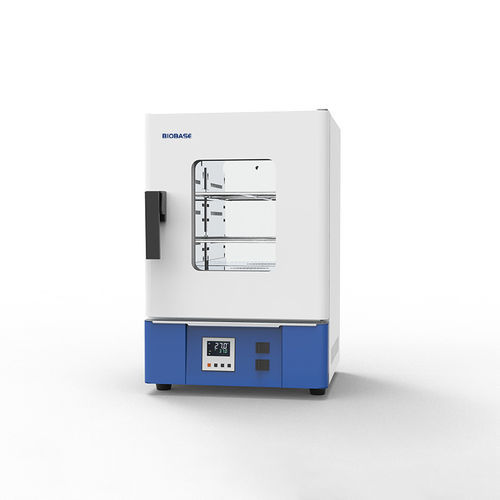

Forced convection incubator drying oven BJPX-HGZ30L

forced airdrylaboratory

Introduction
This drying oven is designed for drying, disinfection, wax melting and dry-heat sterilization of non-flammable, non-explosive and non-volatile items. Typical applications include drying experimental samples, food and glassware; thermal hardening, denaturation or softening; moisture removal from chemical substances; dry heat sterilization in bioengineering; and aging/drying of electronic components. Suitable for industry, research labs, food processing and medical units.

Product information

• Brand: BIOBASE
• Origin: CHINA
• Lead time: Within 7 days
• Supply capacity: Direct from factory
• Model: BJPX-HGZ30L

Key features

• 1. Structure design
  • LCD display
  • Built-in temperature deviation calibration
  • Parameter memory with automatic recovery
• 2. Timing settings
  • Accurate heating-time control
  • Timing range: 0–9999 min/h
  • Timing error ≤ 1%
• 3. Independent fan switch
  • Selectable fan operation according to heating needs
  • Forced-fan cooling structure keeps fan temperature < 50℃
• 4. Exterior design
  • Vertical layout
  • Electrostatically sprayed steel-plate shell — corrosion resistant
  • Optional casters for mobility
• 5. Three-dimensional circulation air duct
  • Bottom air blast cooperating with bottom heating
  • Vertical double-duct hot-air circulation
  • Temperature uniformity suitable for high-precision tests

Technical parameters
Model: BJPX-HGZ30L
Capacity: 30 L
Temperature range: RT+10℃~300℃
Temperature precision: 0.1℃
Temperature uniformity: ≤ Max Temp. ±2.5%
Circulation mode: Bottom heating, forced convection (three-dimensional vertical double-duct)
Timing range: 0~9999 min/h
Shelves: 2 pcs
Display: LCD
Power supply: 100~245 V, 50/60 Hz
Internal size (mm): 310×310×310
External size (mm): 440×670×495
Packing size (mm): 520×810×550
Gross weight: 50 kg

Characteristics / specifications

• Model: BJPX-HGZ30L
• Capacity: 30 L
• Temperature range: RT+10℃ to 300℃
• Precision: 0.1℃
• Uniformity: ≤ Max Temp. ±2.5%
• Circulation: Bottom heating with forced convection (three-dimensional)
• Timer: 0–9999 min/h (error ≤1%)
• Display: LCD with parameter memory and deviation calibration
• Shelves: 2 (adjustable)
• Power: 100–245 V, 50/60 Hz
• Internal dimensions: 310×310×310 mm
• External dimensions: 440×670×495 mm
• Packing size: 520×810×550 mm
• Gross weight: 50 kg
