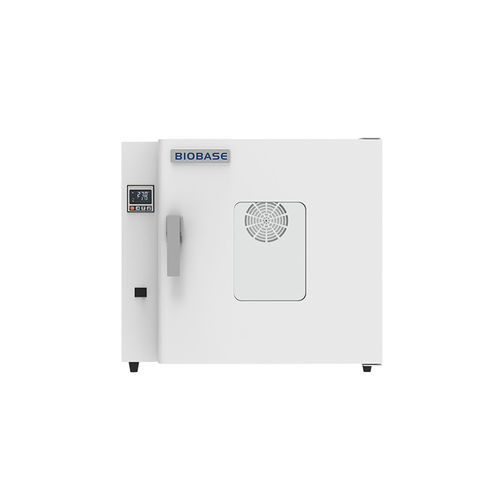

Dry incubator drying oven BJPX-HDO series

natural convectionfor general purposesfor hospitals

Introduction
Suitable for drying powder samples, insects and other small items, preventing sample dispersion. Used for drying and melting wax of non-flammable, non-explosive and non-volatile materials in industrial and mining enterprises, universities, research institutes, food processing, medical facilities and laboratories.

Key features

• LCD temperature display with built-in temperature deviation calibration and parameter memory.
• Over-temperature alarm and automatic fault detection; equipped with leakage current and overvoltage protection.
• Accurate timing control with timing error ≤ 1%.
• Bottom heating with natural convection for uniform drying.
• Cold-rolled steel exterior with plastic spray finish; stainless-steel interior liner; arc-structure design for easy cleaning.
• Double-layer high-temperature resistant glass observation window in the door.
• Parameter memory and automatic recovery on power restoration; optional USB port and printer.

Technical Parameters
Model: BJPX-HDO43 | BJPX-HDO55 | BJPX-HDO72 | BJPX-HDO138 | BJPX-HDO270
Capacity: 43L | 55L | 72L | 138L | 270L
Temp. Range: RT+10℃ ~ 250℃
Temp. Resolution: 0.1℃
Temp. Fluctuation: ±1℃
Temp. Uniformity: ≤ Max temp. ±3%
Display: LCD display
Heating Method: Bottom heating, natural convection
Timing Range: 1~9999 min/h or continuous; timing error ≤ 1%
Standard Accessories: Shelf
Optional Accessories: Additional shelf, USB port, printer
Shelves: BJPX-HDO43 / BJPX-HDO55 / BJPX-HDO72: 2 pcs; BJPX-HDO138 / BJPX-HDO270: 3 pcs
Power Supply: BJPX-HDO43~HDO138: AC100~245V, 50/60Hz; BJPX-HDO270: AC220V, 50/60Hz (standard); 110V optional (external transformer)
Power: BJPX-HDO43~HDO138: 1500W; BJPX-HDO270: 3000W
Inner Size (W*D*H): 368*350*335 mm | 370*370*430 mm | 390*400*450 mm | 500*500*550 mm | 660*590*700 mm
External Size (W*D*H): 597*510*530 mm | 596*575*618 mm | 614*548*609 mm | 724*663*709 mm | 900*850*880 mm
Packing Size (W*D*H): 690*710*660 mm | 720*710*730 mm | 830*700*800 mm | 870*795*850 mm | 1010*946*1050 mm
Net Weight: 35 kg | 28 kg | 45 kg | 60 kg | 86.5 kg
Gross Weight: 45 kg | 51 kg | 55 kg | 77 kg | 100 kg

Specifications

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Series / Models: BJPX-HDO (BJPX-HDO43, BJPX-HDO55, BJPX-HDO72, BJPX-HDO138, BJPX-HDO270)
• Temperature control: LCD with deviation calibration and parameter memory
• Temperature range & accuracy: RT+10℃ to 250℃; resolution 0.1℃; fluctuation ±1%; uniformity ≤ Max temp. ±3%
• Heating & circulation: Bottom heating, natural convection
• Timer: 1–9999 min/h or continuous
• Electrical: Multiple supply options by model; power ratings 1500W or 3000W
• Construction: Cold-rolled steel exterior with plastic spray; stainless-steel interior; double-layer high-temp glass window
• Accessories: Shelves standard; USB port and printer optional
