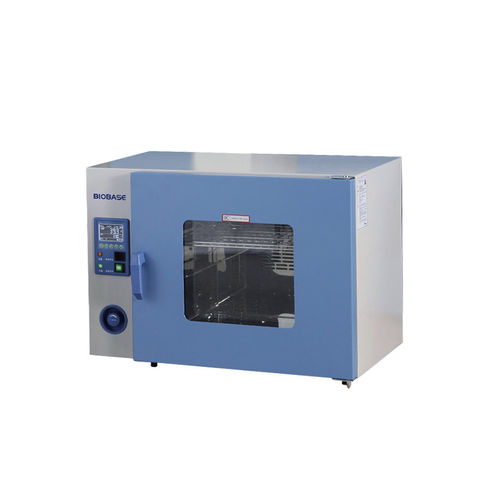

Hot air incubator drying oven BOV-D series

forced convectiondryfor scientific research

Introduction
The BIOBASE drying oven/incubator is a dual‑purpose laboratory device for incubation of bacteria, molds, microorganisms and tissue cells, and for drying, baking, heat treatment, disinfection and sterilization. Suitable for universities, research laboratories and production departments.

Models

• BOV-D35 — 35 L
• BOV-D53 — 53 L
• BOV-D87 — 87 L
• BOV-D149 — 149 L
• BOV-D248 — 248 L

Features

• Exterior: cold‑rolled steel plate with painted finish; interior: SUS stainless steel plate.
• Rear air inlet and outlet with adjustable airflow for controlled circulation.
• Silicone rubber sealing strip and double‑glass door observation window for clear viewing.
• Microcomputer controller for precise and reliable temperature control; temperature resolution 0.1°C.
• Inner chamber with circular‑arc design for easy cleaning; micro‑air circulation for thermal uniformity.
• Safety alarms: over‑temperature and temperature probe fault.

Technical specifications
Model: BOV-D35 | BOV-D53 | BOV-D87 | BOV-D149 | BOV-D248
Capacity: 35 L | 53 L | 87 L | 149 L | 248 L
Temperature range: BOV-D35 Incubator RT+5~80°C; Oven 80~220°C. BOV-D53/BOV-D87/BOV-D149/BOV-D248 Incubator RT+5~80°C; Oven 80~200°C.
Temperature uniformity: BOV-D35 ±3%(@100°C); Others Incubator ≤±1°C; Oven ≤±2.5%.
Temperature fluctuation: BOV-D35 Incubator ±0.5°C; Oven ±1°C. Others ±0.5°C.
Timing range: BOV-D35 0~5999 min; Others 0~9999 min
Display: BOV-D35 LCD; Others LED
Power supply: AC 220V 50/60Hz (standard); 110V 50/60Hz (optional)
Power consumption: BOV-D35 850W; BOV-D53 700W; BOV-D87 1200W; BOV-D149 1500W; BOV-D248 2000W
Shelves: 2 pcs (standard)
Optional accessories: USB or printer (choose one); independent external temperature protection device
Internal dimensions (W×D×H): 340×325×320mm | 357×356×419mm | 420×416×499mm | 498×500×600mm | 598×582×713mm
External dimensions (W×D×H): 620×490×490mm | 540×615×750mm | 604×674×830mm | 680×771×935mm | 782×855×1045mm
Net/Gross weight: 27/35 kg | 48/56 kg | 60/71 kg | 78/92 kg | 99/116 kg

Key specifications

• Brand: BIOBASE
• Series: BOV-D series
• Applications: incubation, drying, heat treatment, disinfection, sterilization
• Controller: microcomputer; temperature accuracy 0.1°C
• Materials: painted cold‑rolled steel exterior; SUS stainless steel interior
• Circulation: micro‑air circulation for uniformity
• Power: 220V standard (110V optional)
• Options: USB/printer; external temperature protection device
