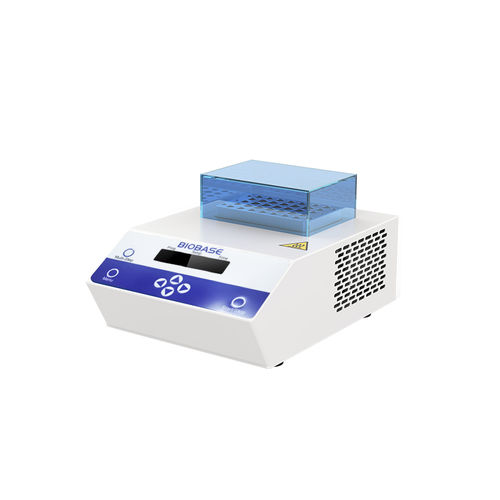

Thermoelectric laboratory incubator BK-HW series

hot airdryfor biochemistry

Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model(s): BK-HW100D, BK-HW100, BK-HW100G

Introduction
Dry bath incubators are microcomputer-controlled benchtop instruments using semiconductor refrigeration or heating-film technology. They accept interchangeable modules and are designed for controlled heating/cooling and incubation of tubes and microplates for sample storage, enzyme reactions, nucleic acid/protein denaturation, PCR pre- and post-processing, electrophoresis pre-denaturation and serum coagulation applications.

Key features

• Microcomputer controller for stable, precise temperature management.
• LCD display with a simple interface for easy setup and operation.
• Interchangeable modules support a range of tube formats and volumes.
• Over-temperature protection and power-on self-test for safe operation.
• Programmable multi-period control (up to 5 periods) with storage for 10 programs.
• Automatic fault detection with buzzer alarm.
• Temperature deviation calibration (correction) function.

Technical parameters
Model: BK-HW100D | BK-HW100 | BK-HW100G
Temp setting range: BK-HW100D: RT+5°C ~ 105°C | BK-HW100/BK-HW100G: 0°C ~ 105°C
Temp control range: BK-HW100D: RT+5°C ~ 105°C | BK-HW100/BK-HW100G: RT-20°C ~ 105°C (TEC for cooling models)
Time setting range: 1 min ~ 99 h 59 min
Temp fluctuation: ≤ ±1°C | Module uniformity: ≤ ±0.5°C | Display accuracy: 0.1°C
Heating rate: BK-HW100D ≤ 40 min (RT→100°C); BK-HW100/BK-HW100G ≤ 25 min (26°C→100°C)
Cooling speed: Not applicable (BK-HW100D); TEC models ≤ 25 min (100°C→RT) and ≤ 25 min (RT→RT-20°C)
Shaking speed: BK-HW100G 200~1800 r/min (if applicable); others: not applicable
Storage: 10 programs | Alarm: power-on self-test, over-temp protection, fault alarm
Consumption: 100 W (BK-HW100D); 150 W (BK-HW100/BK-HW100G)
Power supply: AC 220V/110V, 50/60Hz
Standard module: B01 (0.5~2 ml) for BK-HW100D/BK-HW100; GB01 (0.5~1.5 ml) for BK-HW100G
External dimensions (W*D*H): 300*215*195 mm (BK-HW100D); 300*215*175 mm (BK-HW100); 300*215*180 mm (BK-HW100G)
Net weight: 4.3 kg / 7 kg / 8.5 kg respectively
Package size: 375*290*310 mm (all models) | Gross weight: 6 kg / 8.1 kg / 10.3 kg

Modules and accessories

• Standard modules supplied as above; additional modules and adapters are available for different tube formats.
• Optional TEC cooling modules and shaking module (BK-HW100G) available where specified.

Applications

• Sample incubation and controlled storage
• Enzyme incubation and reactions
• Nucleic acid and protein denaturation treatments
• PCR preparation and incubation steps
• Pre-denaturation for electrophoresis and serum coagulation
• Other laboratory temperature-controlled processes

Ordering information
Contact supplier for configuration, module options, shipping and after-sales. Specify model and required modules when ordering. With mark (●) or no mark indicates round-bottom tube; with mark (▲) indicates sharp-bottom tube.
