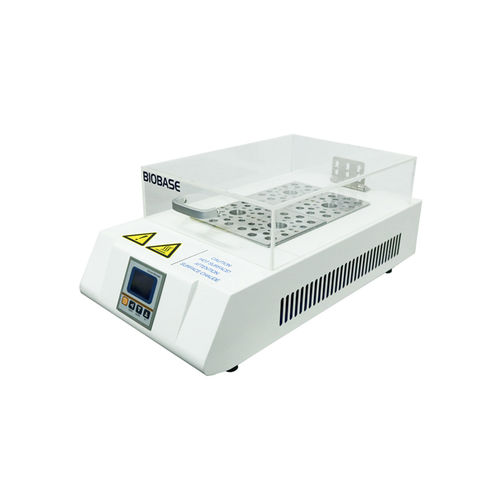

Digital block heater BJPX-DB series

thermostaticmicroprocessor-controlledbenchtop

Introduction
The BJPX-DB dry bath incubator is a laboratory device for precise sample incubation, heating and temperature maintenance without liquid baths. Suitable for molecular biology, biochemistry, clinical and environmental labs where dry heating and rapid block exchange are required.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Models: BJPX-DB1, BJPX-DB2, BJPX-DB4
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply

Key features

• PID microprocessor temperature control with 0.1°C display resolution
• Interchangeable aluminum heating blocks to accommodate tubes from 0.2 ml to 2.0 ml and various diameters
• LCD with real-time temperature and countdown display
• Automatic fault detection, alarm and temperature deviation calibration
• Fast heating: ≤20 min (30→130°C); ≤30 min (30→160°C)

Technical specifications
Model | BJPX-DB1 | BJPX-DB2 | BJPX-DB4
Block Quantity | 1 | 2 | 4
Temp. Control | PID microprocessor controller
Temp. Range | RT+5°C ~ 160°C
Temp. Accuracy | ±0.5°C (at 40°C)
Temp. Uniformity | ±1.0°C (at 40°C)
Display Accuracy | 0.1°C
Timing Range | 1 ~ 9999 mins or continuous
Heating Time | ≤20 mins (30°C→130°C); ≤30 mins (30°C→160°C)
Material | Cover: Acrylic; External: Cold-rolled steel with antibacterial powder coating
Standard Block | DB005 ×1 | DB005 ×2 | DB005 ×4
Power Supply | 220VAC±10% or 110VAC±10%; 50/60Hz
External Size (W*D*H) | 310*220*190mm | 380*260*200mm | 502*260*200mm
Net/Gross Weight | 3.5/5kg | 8/10kg | 10/12kg

Optional blocks

• DB001 — 0.2 ml centrifuge tube — max 96
• DB002 — φ6 mm — max 50
• DB003 — 0.5 ml centrifuge tube — max 40
• DB004 — φ10 mm — max 28
• DB005 — 1.5 ml centrifuge tube — max 28
• DB006 — 2.0 ml centrifuge tube — max 28
• DB007 — φ13 mm — max 24
• DB008 — φ16 mm — max 15
• DB009 — φ18 mm — max 12
• DB010 — φ20 mm — max 8
• DB011 — φ26 mm — max 6
• DB012–DB014 — mixed/custom sizes

Applications

• Incubation and heat treatment of samples in research and clinical labs
• Processes requiring rapid block change and dry heating (PCR preparation, enzyme reactions, sample thawing)
• Custom block configurations available for specific tube formats and workflows
