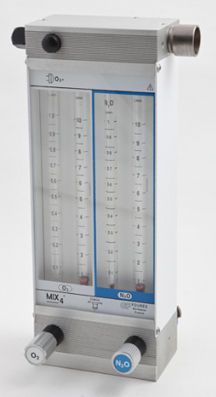

Anesthesia gas blender Mix 4, Mix 5
oxygennitrous oxidetube flow meter

anesthesia gas blender
anesthesia gas blender
Add to favorites
Compare this product


Characteristics

Applications
anesthesia
Gas type
oxygen, nitrous oxide
Technology
tube flow meter

Description

The MIX 4 and MIX 5 safety gas mixer are devices allowing to supply a medical gas mixture (O²/N²O or O²/Air). Compared to the MIX 2 and MIX 3 these safety gas mixers allow a more accurate reading due to twin tubes (O², N²O) functioning. Mainly used in workroom, operating theatre and examination room. The advantages and security of these devices are the following : - Possibility of very light flow mixture. - Twin reading tubes providing a high precision level. - Separate gas flow reading. - Fine control flowmeters, individual calibration. - Supply pressure variations insensitivity. - Safety regulation even working with light flows and preventing the mixture to contain less than 20% of oxygen. - Complete nitrous oxide cut off in case of oxygen supply default. - Audible alarm in case of failure of oxygen supply. - Oxygen supply outlet for auxiliary use. - Oxygen by pass built in push button. SPECIFICATIONS MIX 4 – O²-N²O - MIXER O2 Flow : Mini. 0,2 L/min - Maxi. 15 L/min. AIR Flow : Mini. 0,2 L/min - Maxi. 15 L/min Mixture Flow : Mini. 0,4 L/min - Maxi. 30 L/min. (Oxygen 50%) O2+ By pass flow : 55 L/min (Option) Supply pressure : 2,5 to 7 bars Minimum O² pressure alarm : 1,5bar Dimensions : W320-D150-H135 mm Weight : 2,8 kg MIX 5 O² - N²O – AIR – MIXER Selector switch preventing AIR and N²O simultaneous flow AIR Flow : Mini. 0,2 L/min - Maxi. 15 L/min Weight : 3,5 kg This devices are in compliance with the EN-740 standard (oxygen alarm built in the device) and the European Medical Device Direc-tive 93/42/CEE. OPTIONS Outlet cone for O² flush connection Supplying gas pipe Universal rail adaptator Tube fixation adaptator Oxygen sensor with adaptator
