Anesthetic gas scavenging system

Venturi

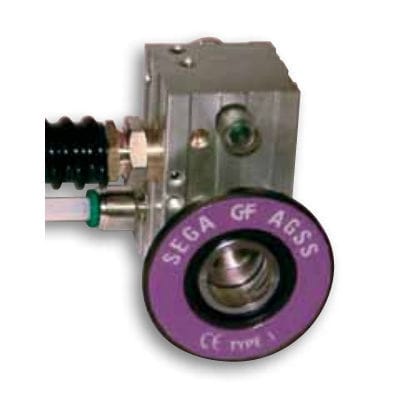

Centralized A.G.S.S Terminal unit Anesthesic gases scavenging system The AGSS terminal unit is an Anaesthetic gas scavenging system used to avoid pollution of the operating theatre’s atmosphere with anaesthetic vapours. With a size minimized, making this piece features a light is easily integrated into the sleeves and arms ceiling DETAILS The AGSS terminal unit is an Anaesthetic gas scavenging system used for avoiding the pollution of the operating theatre’s atmos-phere with anaesthetic vapours. This system which is made in one piece and equipped with an integrated indicator is easily integrated in trunks/ pendants. SPECIFICATIONS CA operating pressure : 4 to 6 bars CA flowrate : 20 L / min Aspirated volume (under 5 bars) : 60L/min Various features : integrated indicator, mounting on the back or trunks or wall mounted Conformity : Standard NF EN7 37- 4 MOUNTING Mounting on the back of trunks or boxes, with plateMounting on front of trunks or pendants with 4 M4 screws. In each case, drill a hole to built in the head of the system the indicator and the adjusting screw. Possibility of pre drilled front plate mounting provided on request. OPTIONS Probe type1/45 Wall mounted box for AGSS terminal unit Ringed pipe ø 22 lg.3m with vent cone tip F22 Ringed pipe ø 22 lg.3m with vent cone tip F30
