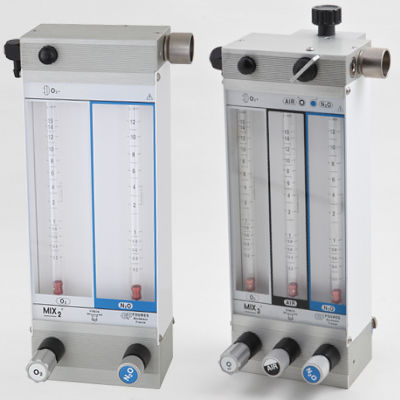

Anesthesia gas blender Mix 2, Mix 3

oxygenairnitrous oxide

The MIX 2 and MIX 3 safety gas mixer are devices allowing to supply a medical gas mixture (O²/N²O or O²/Air). Mainly used in workroom, operating theatre and examination room. The advantages and security of this devices are the following : - Possibility of very light flow mixture. - Separate gas flow reading. - Fine control flowmeters, individual calibration. - Supply pressure variations insensitivity. - Safety regulation even working with light flows and preventing the mixture to contain less than 20% of oxygen. - Complete nitrous oxide cut off in case of oxygen supply default. - Audible alarm in case of failure of oxygen supply. - Oxygen supply outlet for auxiliary use. - Oxygen by pass built in push button. SPECIFICATIONS MIX 2 – O²-N²O - MIXER O2 Flow : Mini. 0,2 L/min - Maxi. 15 L/min. AIR Flow : Mini. 0,2 L/min - Maxi. 15 L/min Mixture Flow : Mini. 0,4 L/min - Maxi. 30 L/min. (Oxygen 50%) O2+ By pass fl ow : 55 L/min (Option) Supply pressure : 2,5 to 7 bars Minimum O² pressure alarm: 1,5bar Dimensions : W 320-D 150-H 135 mm Weight : 2,8 kg MIX 3 O² - N²O – AIR – MIXER Selector switch preventing AIR and N²O simultaneous flow AIR Flow : Mini. 0,2 L/min - Maxi. 15 L/min Weight : 3,2 kg This devices are in compliance with the EN-740 standard (oxygen alarm built in the device) and the European Medical Device Directive 93/42/CEE. OPTIONS ■ Cône de sortie pour raccordement Oxygène rapide ■ Flexibles d’alimentation gaz ■ Adaptateur universel rail ■ Adaptateur pour fi xation sur tube ■ Analyseur d’Oxygène et raccord ■ Circuit patient (raccord, tuyau, masque, ballon et valve)
