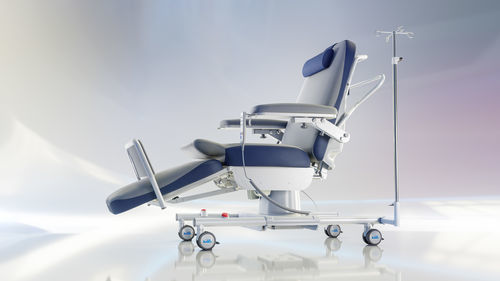

Urological treatment chair UniversalLine3

gynecologicalchemotherapyelectric

Overview
The UniversalLine3 therapy chair is designed for medical settings where comfort, safety and flexible positioning are required. It allows complete flat positioning including a true Trendelenburg position and is suitable for a wide range of clinical applications.

Product Highlights at a Glance

• Simple, intuitive operation
• Electrically adjustable reclining surfaces
• Comfortable upholstery for longer treatments
• Fold-down and width-adjustable armrests
• Height-adjustable neck cushion
• Individually lockable castors
• Service-friendly, durable motors
• Shock position via foot switch and hand control
• Battery operation possible

Added cost-effectiveness
The upholstery with a smooth transition between seat and leg sections supports ergonomic patient positioning during prolonged treatments. Full-flat positioning expands the range of clinical uses. A tubular steel base provides a consistent, modern appearance and cross-model compatible accessories (e.g. infusion stand) reduce investment costs.

Functionality that makes the difference
Two independent shock switches enable rapid and safe entry into the shock position; activation is also possible via the hand control. The chair can be positioned in a true Trendelenburg angle for emergency care. Prepared holders for smartphones and tablets and a USB A/C port support patient communication and entertainment during treatment.

Proven in everyday use
The mechanically adjustable footrest is set to the patient once and then adapts automatically to subsequent chair adjustments. Fold-down, laterally adjustable armrests allow optimal arm positioning. Increased ground clearance simplifies cleaning under the chair without repositioning, supporting efficient hygiene routines.

Versatile accessories for individual requirements

• Infusion stand
• Paper roll holder
• Equipment or patient table
• USB charging port (A/C)
• Push handle
• Reading light
• Sliding handle
• Castor holder

Application areas

• Nephrology — Dialysis, apheresis
• Oncology — Day clinic / chemotherapy outpatient unit, infusion therapy
• Transfusion medicine — Blood donation, plasmapheresis, apheresis
• Anaesthesia — Recovery room, pain therapy
• Dermatology — Chemotherapy, infusion therapy
• Gynaecology — Chemotherapy, breast centre
• ENT — Recovery room
• Rheumatology — Outpatient clinic, infusion therapy
• Urology — Chemotherapy, prostate centres

Important functions

• Free access to the patient from all sides
• Secure stability with individually lockable castors
• Maximum reclining comfort even during long treatments
• Entertainment and communication during treatment
• Integrated reading light for added comfort
• Optimal arm positioning thanks to fold-down and laterally adjustable armrests
• Versatile use thanks to complete flat positioning
• True Trendelenburg position for emergencies
• Hygienic cleaning without repositioning the therapy chair
• Intelligent leg section adjustment with automatic length compensation
• Safe and tidy cable management
• High load capacity for a wide range of patient groups
• Hand control always within easy reach
• Double safety during shock positioning
• Ergonomic support for the head and neck
• Modern design with a system-oriented approach

Technical data
Dimensions
Seat width: 61 cm
Overall width, incl. armrests: narrow: 83 cm / wide: 92 cm
Overall length: 205 – 222 cm
Armrest: 52 cm x 15.5 cm

Adjustment options
Backrest angle: 72° – 0°
Seat section angle: 0° – 25°
Leg section angle: 26° – 0°
Height adjustment: 54 – 75 cm

Electrical specifications
Supply voltage V / Hz: 100 – 240 Volt / 50/60 Hz
Protection class: 2
Protection rating of control unit: IPX4
Protection rating of hand control: IPX6
Motors: 4
Nominal battery operating voltage (optional): 25.55 Volt
Battery capacity (optional): 2.6 Ah

Safety
Safe working load: 250 kg

Characteristics / technical specifications

• Model: UniversalLine3
• Seat width: 61 cm
• Overall width incl. armrests: 83 cm (narrow) / 92 cm (wide)
• Overall length: 205–222 cm
• Armrest dimensions: 52 cm x 15.5 cm
• Backrest angle range: 72°–0°
• Seat section angle range: 0°–25°
• Leg section angle range: 26°–0°
• Height adjustment: 54–75 cm
• Supply voltage: 100–240 V, 50/60 Hz
• Protection: Control unit IPX4; Hand control IPX6
• Number of motors: 4
• Optional battery: 25.55 V, 2.6 Ah
• Safe working load: 250 kg
