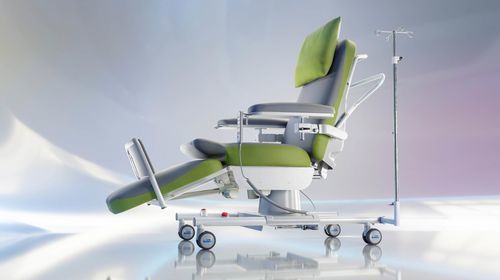

Dermatology treatment chair ComfortLine3

urologicalgynecologicalENT

Product overview
The ComfortLine3 is the further development of proven therapy chairs for clinical use. It features a clear design, intuitive operation and three-part electrically adjustable lying surfaces to support precise patient positioning. The hand control includes preset quick-access buttons (shock position, flat surface, entry/exit). Battery operation is available as an option. Five service-friendly motors ensure comprehensive adjustment capabilities.

Product highlights at a glance

• Simple, intuitive operation
• Three-part electrically adjustable lying surfaces
• Comfortable padding for longer treatments
• Ergonomic armrests adjustable in height and width
• Height-adjustable headrest cushion
• Secure central brake
• Service-friendly, long-lasting motors (5)
• Shock (emergency) position via footswitch and hand control
• Optional battery operation (lithium-ion)

Designed for people
The three-part lying surface can be adjusted electrically from sitting to horizontal positions to enable quick, ergonomic patient positioning. The hand control allows intuitive operation of core functions and includes preset quick-access buttons for frequently used positions to speed up routine procedures.

Comfort and safety
Dual activation of the shock position (footswitch and hand control) supports emergency handling. New ergonomic armrests are tiltable, swivelling and adjustable in height and width to enhance comfort during long procedures such as infusions or transfusions. Upholstery design avoids Velcro and overlapping sections reduce ingress of dirt.

Economical and durable
Robust frame with sealed 100 mm diameter castors provides easy manoeuvrability under load. Central brake secures the chair in place. Five service-friendly motors deliver long-lasting performance. Battery option enables flexible use without direct mains connection. Materials are disinfectant-resistant and the enclosed base frame and lift column facilitate cleaning.

Versatile accessories
Available accessories include: IV pole, IV pole holder, paper roll holder, patient table, reading light, handle on the backrest, plastic protection for leg section padding, luggage rack, lithium-ion battery, USB charging port and equipotential bonding cable.

Application areas

• Anesthesia: Recovery room, pain therapy
• Dermatology: Chemotherapy, infusion therapy
• Gynecology: Chemotherapy, breast centre
• ENT: Recovery room
• Nephrology: Dialysis, apheresis
• Oncology: Day clinic / chemo outpatient, infusion therapy
• Rheumatology: Outpatient clinic, infusion therapy
• Transfusion medicine: Blood donation, plasmapheresis, cell separation
• Urology: Chemotherapy, prostate centres

Important functions

• Stable, tip-proof frame with castors
• Three-part lying surface with individual electric adjustment
• Good mobility via 100 mm diameter sealed castors
• Potential equalization for enhanced electrical safety
• Functions lockable via hand switch
• All upholstery sections adjustable via hand switch
• Quick and easy headrest adjustment
• Horizontal lying position button on hand switch
• Closed leg section without gap
• Plastic protection available for footrest upholstery
• Enclosed base frame and lift column for easier cleaning
• Velcro-free upholstery design
• Central brake

Characteristics / Technical specifications

• Model name: ComfortLine3
• Three-part electrically adjustable lying surface
• Five built-in, service-friendly electric motors
• Shock position operable via footswitch and hand control
• Hand control with preset quick-access buttons (shock, flat, entry/exit)
• Ergonomic armrests: tiltable, swivelling, height and width adjustable
• Height-adjustable headrest cushion
• Seat width: 61 cm
• Total width (with armrests): Narrow 83 cm / Wide 92 cm
• Total length: 205–222 cm
• Height adjustment: 54–75 cm
• Castors: 100 mm diameter, sealed against dirt
• Central brake for secure positioning
• Battery option: lithium-ion battery 25.55 V, 2.6 Ah (accessory)
• Power supply: 100–240 V, 50/60 Hz
• Protection class: 2; Control unit IPX4; Hand control IPX6
• Safe working load: 250 kg
• Materials resistant to disinfectants; overlapping seat padding
