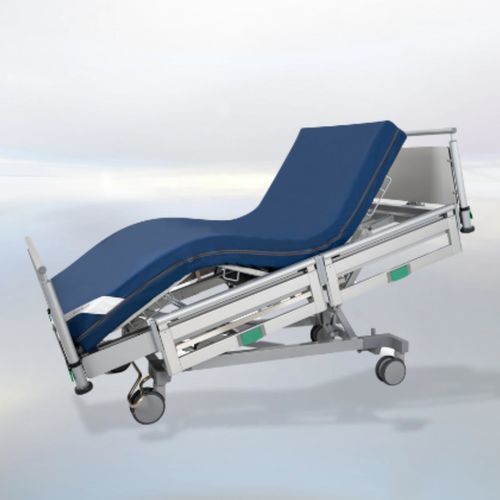

Dialysis bed IMPULSE 300 KL

hemodialysiselectricheight-adjustable

Product overview
The IMPULSE 300 KL dialysis bed is designed for nephrology units requiring flexible patient positioning and secure handling. Intuitive controls, a four-motor drive and purpose-designed ABS hygienic mattress base support efficient workflows while keeping the bed weight moderate for easier manoeuvring.

Product highlights at a glance

• Intuitive operation with patient handset and locking function
• ABS hygienic plastic moulded mattress base (4‑section)
• Automatic CPR and shock function
• Low-voltage drive system with 4 motors
• Battery operation option
• Small centre distance for safe use of floor scales
• Antistatic 150 mm double castors for mobility
• Gradually adjustable integrated bed extension (up to 20 cm)

Application area
Nephrology: dialysis and apheresis treatments; suitable for haemodialysis units and apheresis procedures.

Important functions

• Four-section ABS mattress base with hygienic surface
• Tool-free removable bed fronts for cleaning and maintenance
• 150 mm antistatic double castors for easy positioning
• CPR function: electric and manual release
• Integrated, tool-free bed extension up to 20 cm
• Mobilising side-rail system for patient support
• Supply rails on both sides for accessories and lines

Technical data
Dimensions:
Overall width: 104 cm
Overall length: 220 cm
Bed extension: 20 cm
Lying surface: 200 x 90/80 cm
Height of side rails: 39 cm
Total weight: approx. 120 kg

Adjustment options:
Backrest angle: 71°
Leg rest angle: 43°
Height adjustment range: 36–86 cm (from mattress base frame)
Angle shock position: –14°

Electrical specifications:
Protection class: 2
Ingress protection: IPX6
Standards: EN 60601
Motors: 4

Safety:
Safe working load: 240 kg
Maximum patient weight: 185 kg

Versatile accessories
Available accessories include a second handset, mattress extension, patient table, infusion pole and push handle to adapt the IMPULSE 300 KL to specific clinical requirements.

Characteristics / technical specifications

• Model: IMPULSE 300 KL
• Overall width: 104 cm
• Overall length: 220 cm
• Integrated bed extension: 20 cm (tool-free)
• Lying surface options: 200 x 90/80 cm
• Height of side rails: 39 cm
• Total weight: approx. 120 kg
• Safe working load: 240 kg
• Maximum patient weight: 185 kg
• Backrest angle: 71°
• Leg rest angle: 43°
• Height adjustment: 36–86 cm
• Shock position angle: –14°
• Protection class: 2 / IPX6
• Standards: EN 60601
• Number of motors: 4
