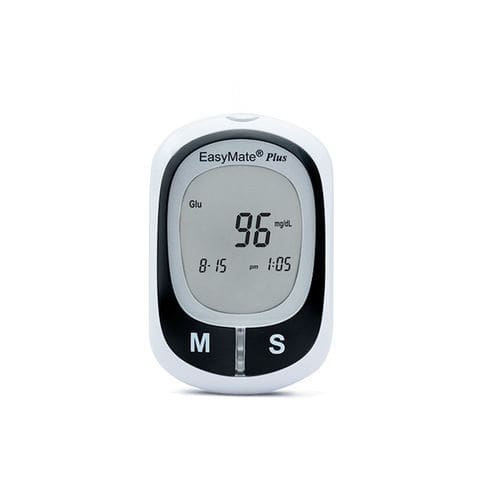

Biochemistry POC analyzer EasyMate®

diagnosticfor home usemultiparametric

Overview
The EasyMate® ET-5661 is an in vitro diagnostic, multi-parameter blood analyzer designed for both professional and self-testing use. It measures glucose, cholesterol, uric acid, hemoglobin and triglycerides from a capillary blood sample. Results are displayed on the LCD after the analyte-specific measurement time.

Key capabilities

• Five analytes in one device: Glucose, Cholesterol, Uric Acid, Hemoglobin, Triglyceride
• Fast measurement times: 6 s (glucose, uric acid, hemoglobin), 15 s (cholesterol), 80 s (triglyceride)
• Compact and portable design for point-of-care and home monitoring
• Large LCD (42 mm × 55 mm) for clear numeric readout

How to use

• Obtain a capillary blood drop from the fingertip and apply it to the corresponding test strip.
• The instrument displays the measurement result on the LCD after the test-specific time.

Display & physical

• Display: LCD 42 mm × 55 mm
• Dimensions: 90 × 59 × 21.8 mm

Intended users
Healthcare professionals and individuals who require monitoring of blood glucose, cholesterol, uric acid, hemoglobin or triglycerides for clinical decision-making or regular self-monitoring.

Instructional resources
Instructional videos and product usage materials are available on the product page to demonstrate device setup and test procedures.

Technical specifications

• Measuring range: Glucose 20–600 mg/dL (1.1–33.3 mmol/L); Cholesterol 100–300 mg/dL (2.6–7.8 mmol/L); Uric Acid 3–20 mg/dL (179–1190 μmol/L); Triglyceride 70–600 mg/dL (0.8–6.8 mmol/L); Hemoglobin 7–26 g/dL (4.3–16.1 mmol/L)
• Test time: Glucose 6 seconds; Cholesterol 15 seconds; Uric Acid 6 seconds; Triglyceride 80 seconds; Hemoglobin 6 seconds
• Battery: One CR2032 battery, 3V operation
• Display size: LCD 42 mm × 55 mm
• Dimensions: 90 × 59 × 21.8 mm
• Model designation: ET-5661
• Intended use: In vitro diagnostic (external use); suitable for self-testing and professional use
