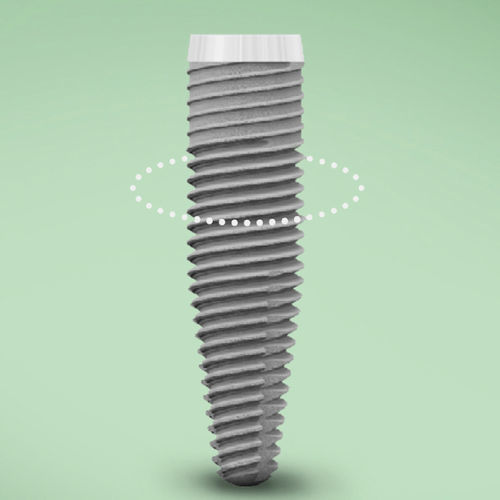

Cylindro-conical dental implant SLIM

titaniuminternal hexagonnarrow

Product overview
SLIM implants have the morphology of the TTi implant and an internal hex connection with Free-Lock technology. The SLIM Line extends and completes the WINSIX System Torque Type Line to meet rehabilitation needs in cases with very narrow anatomical spaces.

Intended uses

• for central and lateral mandibular incisors and maxillary lateral incisors
• very narrow interproximal spaces
• an alternative to regenerative techniques
• for orthodontic treatment and thin ridges

Key features described

• Internal SLIM hex connection with Free-Lock technology (prosthetic stability and seal)
• Polished implant collar h.0.7 mm
• DOUBLE-THREADED and double-step threads for easier implant insertion requiring half the number of turns
• CYLINDRICAL SHAPE with conical apex (apical diameter: 1.50 mm in 2.9 SLIM implant; 2.00 mm in 3.3 SLIM implants)
• Self-tapping CONICAL APEX
• Micro-rough surface (used on all WINSIX implants since 2005) to facilitate osseointegration and cell juxtaposition
• Compatible with the WINSIX Surgical Kit (single surgical kit)
• Available diameters: 2.9 mm and 3.3 mm; among the smallest on the market
• Offers prosthetic solutions for conventional and digital prostheses

Bibliographical references

• Seven–years retrospective analysis of implant–prosthetic treatment with Winsix Implant System — P. Capparè, F. Bova, D. Defilippi, E.M. Polizzi, E.F. Gherlone; Minerva Stomatologica 2014; 63 (4, Suppl.1): 241
• Digital impression for fabrication of definitive “all on four” restoration — E.F. Gherlone MD, DMD; Francesco Ferrini DDS; Roberto Crespi MD, MS; Giorgio Gastaldi MD, DMD; Paolo Capparè MD, MS; Implant Dentistry Vol.4 Number 1 2015

Technical specifications

• Product line: SLIM (WINSIX system)
• Morphology: TTi implant morphology
• Connection: Internal SLIM hex with Free-Lock technology
• Available diameters: 2.9 mm and 3.3 mm
• Apical diameters: 1.50 mm (2.9 mm implant), 2.00 mm (3.3 mm implant)
• Implant collar: Polished, height 0.7 mm
• Thread design: Double-threaded, double-step threads
• Apex: Conical, self-tapping
• Surface: Micro-rough (since 2005)
• Prosthetic compatibility: Multiple solutions for conventional and digital prostheses
• Surgical kit: Usable with WINSIX Surgical Kit
