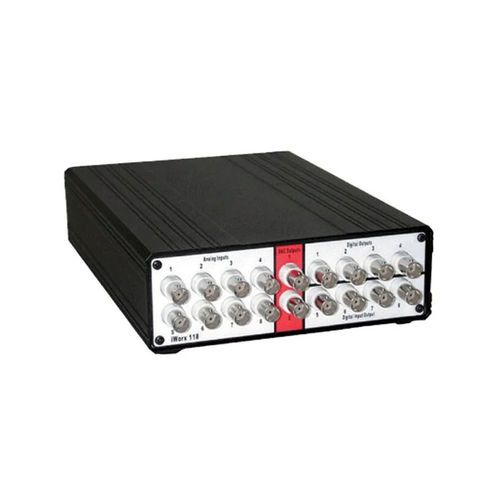

Laboratory data acquisition system IX-118

8-channelUSB

Presentation
The IX-118 is a high-speed, high-resolution data acquisition system designed for laboratory recordings such as organ bath, ECG, pressure and general physiological measurements. It provides 8 analog input channels, 8 digital outputs, 4 digital inputs and 2 independently programmable DACs. The device connects to PC-compatible computers via native USB for plug-and-play operation and uses standard BNC connectors to simplify integration with laboratory instruments.

System Requirements
The IX-118 is used with the LabScribe software. Minimum recommended configuration: Pentium III (or equivalent), Windows 98 or later, 128 MB RAM, and 100 MB free disk space. An Internet connection may be required for software updates.

Analog Outputs
The unit features 2 independently programmable analog outputs (DACs) with a +/-10 V range. Outputs can be synchronized and stimulus parameters (pulse width, frequency, amplitude) are adjustable in the LabScribe toolbar. Standard protocols include pulse, train and step waveforms; a configurable holding voltage enables use in voltage-clamp applications.

Resolution and Noise
The IX-118 uses a 16-bit ADC over a 10 V input range. Typical input noise is < 1 mV, allowing direct recording of signals from approximately 10 mV to 10 V without an external amplifier in many applications.

Technical specifications

• Model / Reference: IX-118
• Sampling rate: 100 kHz
• Analog inputs: 8 channels
• Digital outputs: 8
• Digital inputs: 4
• Analog outputs (DACs): 2, +/-10 V, independently programmable
• ADC resolution: 16-bit
• Input voltage range: up to 10 V
• Typical input noise: < 1 mV
• Connectors: BNC standard
• PC interface: native USB (plug-and-play)
• Typical applications: organ bath recordings, ECG, pressure measurements, general laboratory data acquisition
• Software: LabScribe (minimum: Pentium III, Windows 98+, 128 MB RAM, 100 MB free disk; Internet recommended for updates)
• Form factor: compact, small bench footprint
