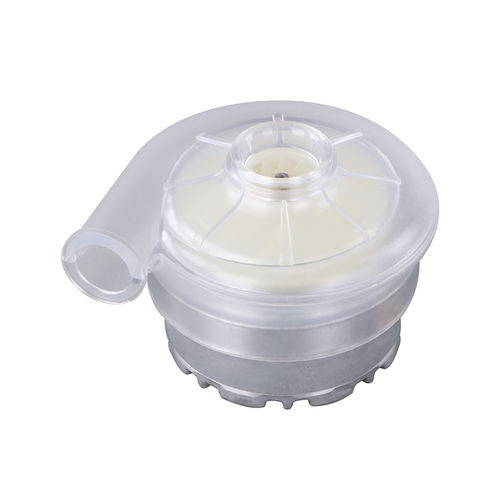

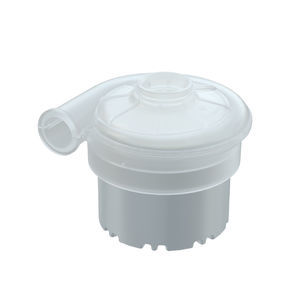

Miniature ventilator centrifugal blower C65MS1

intensive careemergencyhome care

A medium to high performance blower, designed for home care, transport and hospitals. Features: • - Dimensions: 62 (63) x 65.5 x 47 mm • - Available in 4 performance Levels (L2, L3, L4 and L5) • - At nominal voltage (24 V), the maximum pressure at zero flow is around 4’380 Pa (L2) ～ 8’200 Pa (L5), and the maximum flow at free flow is around 380 lpm (L2) ～ 510 lpm (L5). • - Blowers can be run at higher voltages for short periods to reach a higher performance, such as 11’000 Pa at zero flow (L5), or 590 lpm at free flow (L5). • - Available in 12 VDC on demand. • - This blower uses a brushless motor and needs a driver to operate.
