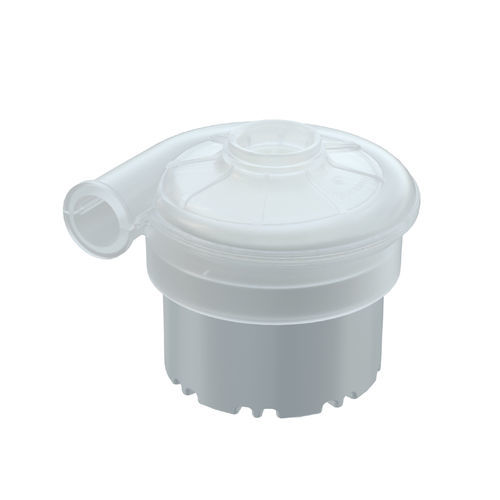

Intensive care ventilator centrifugal blower C65DT1

medicalelectronicdriver

Short description
Compact brushless blower designed for critical care, hospital and transport ventilators. Oxygen-proof and suitable for applications requiring stable flow and pressure control. Supports bilevel operation at 100 bpm and requires an external driver for motor control.

Key specifications

• Max. Flow @ Nominal Voltage [lpm]: 500
• Max. Pressure @ Nominal Voltage [Pa]: 10800
• Static Pressure [Pa]: 10800
• Freeflow [l/min]: 500
• Oxygen Proof: Yes
• Dynamics: +++
• Sound Pressure [dB(A)]: 48.5

Product description

• C65DT1 — Coming soon.
• Dimensions: 65 x 63 x 56 mm
• At nominal voltage (24 V), maximum pressure at zero flow is around 10800 Pa and maximum freeflow is around 500 lpm.
• For short periods the blower can be operated at higher voltages to reach increased peak performance, e.g. up to ~14500 Pa at zero flow or ~580 lpm at free flow.
• Supports bilevel mode at 100 bpm for ventilatory applications.
• Equipped with a brushless motor; an external driver is required for operation.

Characteristics / technical specifications

• Model: C65DT1
• Nominal voltage reference: 24 V (performance data provided at 24 V)
• Max pressure (zero flow) at 24 V: ~10800 Pa
• Max flow (free flow) at 24 V: ~500 lpm
• Peak short-term performance: up to ~14500 Pa or ~580 lpm at higher voltages
• Operating mode: supports bilevel mode at 100 bpm
• Motor type: brushless (requires external driver)
• Oxygen proof: Yes
• Dynamics rating: +++
• Sound pressure: 48.5 dB(A)
• Physical dimensions: 65 x 63 x 56 mm
