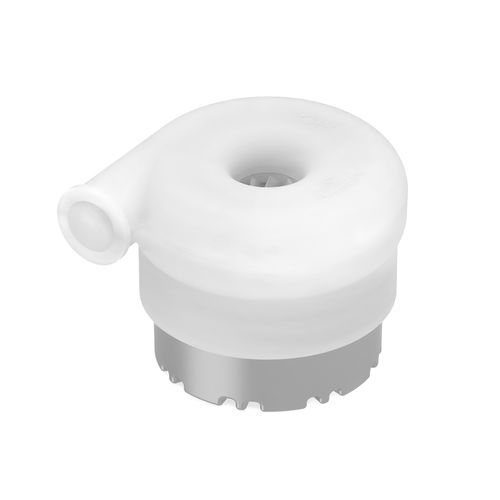

Home care ventilator centrifugal blower C60S1-04

clinicalelectronicdriver

A small and silent blower, for CPAP and home care applications, with driver integrated. Features: • - Dimensions: 61.5 (65.7) x 61.5 x 50.8 mm • - Available in 2 performance levels (L2 and L4) • - At nominal voltage (24 V), the maximum pressure at zero flow is around 4’680 Pa (L2) ～ 7’750 Pa (L4), and the maximum flow at free flow is around 415 lpm (L2) ～ 460 lpm (L4). • - Blowers can be run at higher voltages for short periods to reach a higher performance, such as 10’000 Pa at zero flow (L4), or 515 lpm at free flow (L4). • - Available in 12 VDC on demand. • - This blower has a driver integrated.
