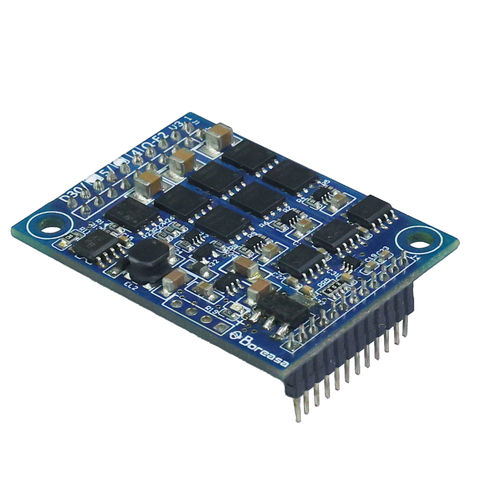

Electronic controller D30/5/4Q-E2

speedmedical

Digital speed control - operates as «closed loop» speed controller Maximum speed 60,000 rpm (motor with 2 poles) Set value input through external analogue voltage (0 ... +3.3 V) Set value input through external PWM 200 Hz SCI protocol available Direction of rotation preset by a digital signal The output stage can be enabled or disabled Motor speed monitoring via «FG» output Status indication via «Ready» output Motor blocked protection (current limit for blocked motor) Protection: over-voltage, under-voltage, motor block, short-circuit Standardized connector strip with 2.54 mm and 2 mm pitch The built-in shunt regulator is designed to limit the supply voltage of the controller
