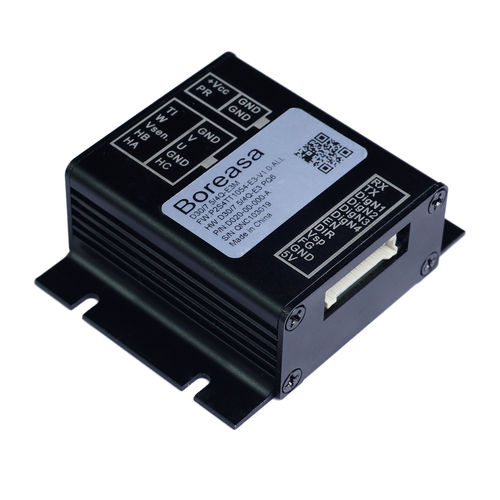

Electronic controller D30/7.5/4Q-E3

medical4-quadrant

Digital speed control - operates as «closed loop» speed controller Maximum speed 60,000 rpm (motor with 1 pair of poles) Set value input through external analogue voltage (0 ... +5 V) Set value input through external PWM 200 Hz SCI protocol available Direction of rotation preset by a digital signal The output stage can be enabled or disabled Maximum output current limit adjustable up to 16 A Motor speed can be monitored with the «FG» output Motor blocked protection (current limit for blocked motor) Protective functions: overvoltage and short circuit protection The built-in shunt regulator is designed to limit the supply voltage of the controller Compact size with aluminum housing
