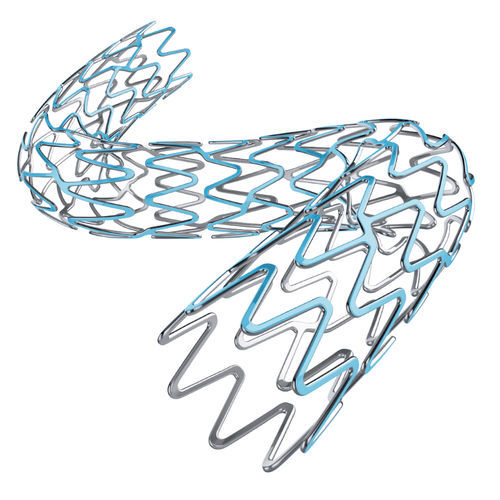

Coronary stent SYNERGY™ XD

platinium-chromiumdrug elutingbioresorbable

Overview
The SYNERGY™ XD is a next‑generation coronary stent system combining thin Platinum Chromium (PtCr) struts with an abluminal bioabsorbable polymer that elutes Everolimus to support early vessel healing and deliverability.

Delivering More
Xtra Deliverability. Optimal healing support through synchronized drug elution and fast polymer absorption.

Key features and benefits

• Abluminal bioabsorbable polymer (BP) enabling synchronous Everolimus elution and rapid polymer absorption to support healing
• Optimized Everolimus drug delivery for controlled antiproliferative effect
• Thin, rounded Platinum Chromium (PtCr) struts for enhanced visibility and vessel conformability
• Xtra Deliverability delivery system combining trackability, pushability and a low profile for improved navigation
• Available 48 mm length offering flexibility for long lesions
• Exceptional overexpansion capability (labeled dilation limit for applicable diameters up to 5.75 mm)

Visibility
High density PtCr platform increases radiographic visibility to facilitate accurate placement and reduce risk of misplacement associated with restenosis or target lesion revascularization.

Xtra Deliverability
The delivery system balances trackability and pushability with a low-profile stent platform to aid navigation through tortuous or complex coronary anatomy.

SYNERGY™ XD 48 mm
Designed for long lesions, the 48 mm option provides flexibility and conformability with demonstrated overexpansion up to 5.75 mm for applicable diameters. Potential procedural efficiencies include reduced device count, shorter procedure time and lower radiation/contrast exposure.

Indications and clinically relevant information
SYNERGY platform is indicated for treatment of patients including those with STEMI. Early healing is supported by thin PtCr struts, optimized Everolimus elution and a fast‑absorbing abluminal bioabsorbable polymer. The SYNERGY BP stent may be used with shortened DAPT in patients at high bleeding risk (HBR); note HBR indication excludes the SYNERGY™ XD 48 mm stent where specified.

Clinical evidence highlights

• CLEAR SYNERGY registry: evaluated SYNERGY in STEMI patients (n=733) with 2‑year outcomes (e.g., 4.8% MACE vs. 9.45% performance goal; 0.8% TLR; 1.1% ST)
• EVOLVE 48 trial: 2‑year results support safety and effectiveness of the SYNERGY 48 mm BP stent for long lesions

Ordering information (stent lengths and product codes)
Please refer to the following product codes by nominal diameter and length (ø in mm). Expansion limits shown where applicable.

• ø 2.25 mm — lengths: 8 (H7493941808220), 12 (H7493941812220), 16 (H7493941816220), 20 (H7493941820220), 24 (H7493941824220), 28 (H7493941828220), 32 (H7493941832220), 38 (H7493941838220) — Expansion limit: 3.50 mm
• ø 2.50 mm — lengths: 8 (H7493941808250), 12 (H7493941812250), 16 (H7493941816250), 20 (H7493941820250), 24 (H7493941824250), 28 (H7493941828250), 32 (H7493941832250), 38 (H7493941838250), 48 (H7493941848250) — Expansion limit: 3.50 mm
• ø 2.75 mm — lengths: 8 (H7493941808270), 12 (H7493941812270), 16 (H7493941816270), 20 (H7493941820270), 24 (H7493941824270), 28 (H7493941828270), 32 (H7493941832270), 38 (H7493941838270), 48 (H7493941848270) — Expansion limit: 3.50 mm
• ø 3.00 mm — lengths: 8 (H7493941808300), 12 (H7493941812300), 16 (H7493941816300), 20 (H7493941820300), 24 (H7493941824300), 28 (H7493941828300), 32 (H7493941832300), 38 (H7493941838300), 48 (H7493941848300) — Expansion limit: 4.25 mm
• ø 3.50 mm — lengths: 8 (H7493941808350), 12 (H7493941812350), 16 (H7493941816350), 20 (H7493941820350), 24 (H7493941824350), 28 (H7493941828350), 32 (H7493941832350), 38 (H7493941838350), 48 (H7493941848350) — Expansion limit: 4.25 mm
• ø 4.00 mm — lengths: 8 (H7493941808400), 12 (H7493941812400), 16 (H7493941816400), 20 (H7493941820400), 24 (H7493941824400), 28 (H7493941828400), 32 (H7493941832400), 38 (H7493941838400), 48 (H7493941848400) — Expansion limit: 5.75 mm
• ø 4.50 mm — lengths: 12 (H7493941812450), 16 (H7493941816450), 20 (H7493941820450), 24 (H7493941824450), 28 (H7493941828450), 32 (H7493941832450) — Expansion limit: 5.75 mm
• ø 5.00 mm — lengths: 12 (H7493941812500), 16 (H7493941816500), 20 (H7493941820500), 24 (H7493941824500), 28 (H7493941828500), 32 (H7493941832500) — Expansion limit: 5.75 mm

Directions for use & safety
Refer to the product Directions for Use (DFU) and the Indications, Safety and Warnings documentation for complete procedural, contraindication and safety information.

Technical specifications

• Model: SYNERGY™ XD
• Brand: Boston Scientific
• Drug: Everolimus (drug‑eluting)
• Polymer: Abluminal bioabsorbable polymer (BP), fast absorbing
• Platform material: Platinum Chromium (PtCr), thin rounded struts
• Delivery system: Xtra Deliverability (trackability, pushability, low profile)
• Available lengths (mm): 8, 12, 16, 20, 24, 28, 32, 38, 48
• Nominal diameters (mm): 2.25, 2.50, 2.75, 3.00, 3.50, 4.00, 4.50, 5.00
• Labeled expansion limits: up to 5.75 mm for applicable diameters (see DFU)
• Clinical evidence: EVOLVE 48, EVOLVE Short DAPT trials and CLEAR SYNERGY registry
