Cardiac catheter FARADRIVE™

steerable

Overview

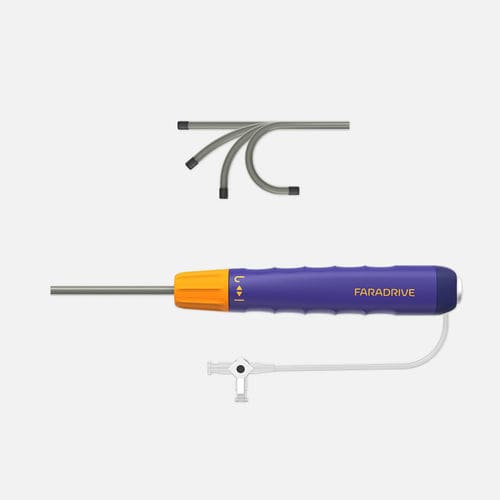

FARADRIVE is a 13F steerable sheath designed to deliver and precisely position the FARAWAVE™ Pulsed Field Ablation Catheter and the FARAWAVE™ NAV Pulsed Field Ablation Catheter to targeted cardiac anatomy. The VersaCross Connect™ Access Solution for FARADRIVE integrates VersaCross technology with FARADRIVE to enable a zero-exchange workflow for left heart access.

Key features

• Maximum catheter maneuverability for targeted positioning
• Facilitates reliable left heart access
• 180 degrees of articulation with catheter inserted
• Unidirectional deflection with 35 mm reach
• Radiopaque distal end for fluoroscopic visualization

Specifications (summary)
Feature: Specifications
Usable length (sheath): 74 cm
Sheath overall length: 91 cm
Inner diameter: 13F
Deflection: Unidirectional, 35 mm reach
Radiopaque: Distal end
Guidewire compatibility: Maximum diameter 0.035"

Dilator specifications
Total length: 97 cm
Usable length: 94 cm

Compatibility

• Pulsed Field Ablation Catheter: FARAWAVE (M004PF41M401, M004PF41M402)
• Pulsed Field Ablation Catheter: FARAWAVE NAV (M004PF41M411, M004PF41M412)
• VersaCross integration: VersaCross Connect Access Solution for FARADRIVE (180 cm Pigtail, VXAK0041; 180 cm J-tip, VXAK0045)

Ordering information

• FARADRIVE Steerable Sheath and Dilator — Reference number: M004PF21M402
• Product SKU on page: fp90000114

Technical specifications

• Usable length (sheath): 74 cm
• Sheath overall length: 91 cm
• Inner diameter: 13F
• Deflection: Unidirectional, 35 mm reach
• Radiopaque distal end
• Guidewire compatibility: Maximum diameter 0.035"
• Dilator total length: 97 cm
• Dilator usable length: 94 cm
