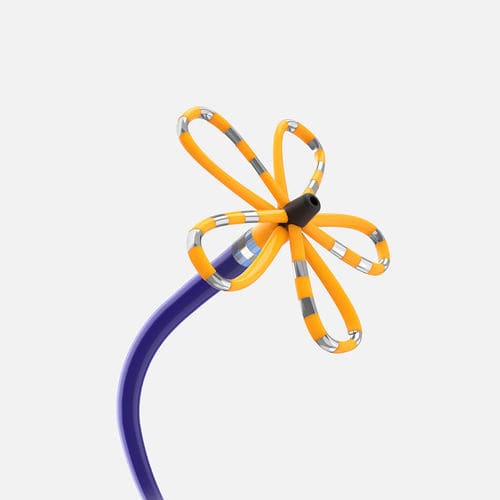

Cardiac catheter FARAWAVE™ NAVsteerable12 FR
Add to favorites
Compare this product
Characteristics
- Area of the body
- cardiac
- Options
- steerable
- Outer diameter
- 12 FR
Description
Overview The FARAWAVE™ NAV Pulsed Field Ablation (PFA) Catheter integrates magnetic tracking for seamless mapping with the FARAVIEW™ Software Module on the OPAL HDx™ Mapping System. This 5‑spline, over‑the‑wire single‑catheter solution enables combined cardiac mapping and PFA therapy delivery while minimizing catheter exchanges.
How it works When paired with the FARAVIEW™ Software Module, the FARAWAVE™ NAV catheter provides dynamic visualization of catheter shape, position and rotation during FARAPULSE procedures. Magnetic tracking combined with contact sensing allows clinicians to acquire cardiac geometry, perform targeted ablation and confirm workflows with fewer device exchanges.
Why choose the FARAWAVE™ NAV PFA Catheter
Required products
Technical specifications Catheter type: Over-the-wire
Shaft diameter: 12F
Distal diameter: 31 mm; 35 mm
Usable length: 115 cm
Number of electrodes: 20
Guidewire compatibility: 0.035" diameter, minimum 180 cm length
Sheath compatibility: FARADRIVE™ Steerable Sheath, 74 cm length; REF M004PF21M402 (USA)
Indications, safety and warnings Refer to the device Instructions for Use and product literature for indications, contraindications, warnings and precautions.
Features / spécifications techniques
How it works When paired with the FARAVIEW™ Software Module, the FARAWAVE™ NAV catheter provides dynamic visualization of catheter shape, position and rotation during FARAPULSE procedures. Magnetic tracking combined with contact sensing allows clinicians to acquire cardiac geometry, perform targeted ablation and confirm workflows with fewer device exchanges.
Why choose the FARAWAVE™ NAV PFA Catheter
- Nav-enabled single-catheter workflow for mapping and ablation, supporting controlled rotations and optimized placement
- Shaft electrode enables sheath detection and visualization of all FARAWAVE™ NAV catheter shapes
- Enhanced visualization of shape, position and rotation to support potential fluoroscopy reduction
- Real-time contact sensing displayed in FARAVIEW™ provides actionable contact information during ablation
Required products
- FARAVIEW™ Software Module
- OPAL HDx™ Mapping System
- FARASTAR™ Pulsed Field Ablation Generator
- FARADRIVE™ Steerable Sheath
Technical specifications Catheter type: Over-the-wire
Shaft diameter: 12F
Distal diameter: 31 mm; 35 mm
Usable length: 115 cm
Number of electrodes: 20
Guidewire compatibility: 0.035" diameter, minimum 180 cm length
Sheath compatibility: FARADRIVE™ Steerable Sheath, 74 cm length; REF M004PF21M402 (USA)
Indications, safety and warnings Refer to the device Instructions for Use and product literature for indications, contraindications, warnings and precautions.
Features / spécifications techniques
- Catheter type: Over-the-wire
- Shaft diameter: 12F
- Distal diameter options: 31 mm and 35 mm
- Usable length: 115 cm
- Electrodes: 20 electrodes
- Guidewire compatibility: 0.035" diameter, min. 180 cm length
- Sheath compatibility: FARADRIVE™ Steerable Sheath (74 cm)
