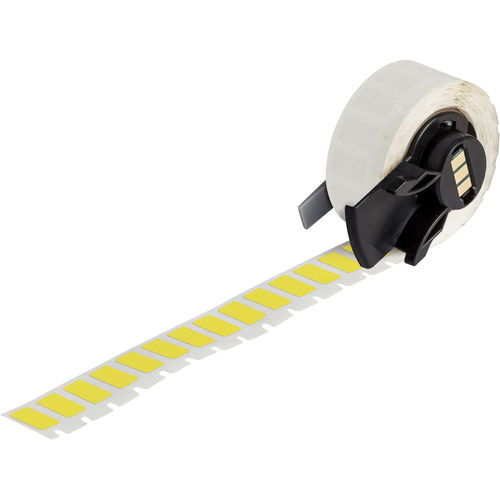

Autoclave-resistant label M6-67-499-YL

cryogenicchemical-resistantdeep freeze

Product description
Nylon cloth wrap-around labels (Brady material B-499) are highly pliable to conform to tightly curved surfaces such as wires and cables. Matte white polyamide-coated nylon with permanent aggressive acrylic adhesive. Designed for thermal transfer printing and for demanding identification where strong adhesion is required.

Benefits

• Highly conformable nylon cloth suitable for wrap-around identification on wires, cables and curved surfaces
• Matte white finish for durable, legible thermal transfer printing
• Permanent aggressive acrylic adhesive for low surface energy and textured surfaces
• UL recognised; CSA accepted
• Service temperature: -40 °C to 90 °C (-40 °F to 193 °F)
• Brady Authentic materials optimised for Brady printers
• Requires a thermal transfer ribbon; recommended ribbon series: R4300 (e.g. M7-R4300)

Key product data (table)
Article Number: 173224
Order Reference: M7C-500-499
Total Qty per Pack: 1 Roll(s) / Box
Minimum Order Quantity: 1
Application(s): Component and equipment labelling; Data and telecommunications labelling; Electrical labelling; General identification; Wire and cable labelling
Brady Material No.: B-499
Brady Material Type: Nylon Cloth
Colour: White
Finish: Matt
Label Properties: Aggressive Adhesive; Low Temperature; Permanent Adhesive

Technical specifications

• Compatibility: BMP71, M710 (also M610, M611 for some variants)
• Dimensions (selected): 12.70 mm (W) x 9.14 m (L); Roll length: 9.14 m; Web width: 19.05 mm
• Thickness: approx. 0.166 mm
• Material properties: Autoclavable; Cryogenic storage; Halogen-free
• Environment / Resistance: Autoclave, Freezer, Liquid Nitrogen; Abrasion-, chemical-, humidity-, UV- and weather-resistant
• Adhesive: Permanent acrylic (aggressive)
• Service temperature range: -40 °C to 90 °C
• Recommended ribbons: R4300, R6000HF, R6200, R6900 (confirm ribbon compatibility with chosen printer)
• Country of Origin: Mexico
• Approvals: UL recognised (white); CSA accepted; RoHS and REACH compliance notes apply
