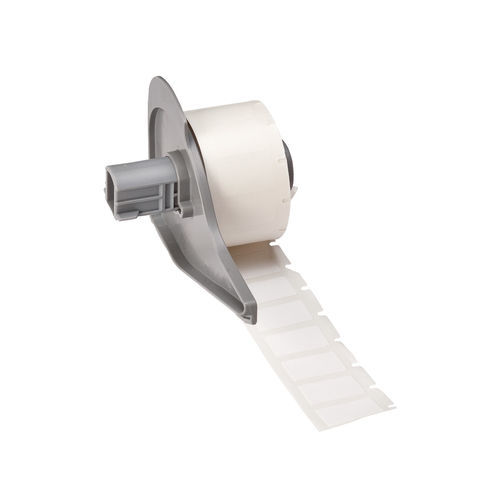

Tube label M6C-375-499

for vialsdeep freezeautoclave-resistant

Product overview
Nylon Cloth wrap-around labels B-499 are flexible, polyamide-coated nylon labels designed to conform to tightly curved surfaces such as wires and cables. Matte white finish with permanent acrylic aggressive adhesive. Thermal transfer printable; ribbon required.

Key benefits

• Highly conformable for wire and cable wrap-around applications
• Permanent aggressive acrylic adhesive for low-energy and textured surfaces
• Suitable for low-temperature and cryogenic storage applications
• UL recognised and CSA accepted
• Brady® Authentic materials maintain printer-material communication and reliability

Key features

• Printer compatibility: BMP71, M710
• Material: Nylon Cloth (polyamide coated), matte white
• Label properties: Aggressive permanent adhesive, low temperature resistance
• Typical dimensions (example): 22.86 mm (W) x 12.70 mm (H)
• Pack quantity: 500 labels per roll / box
• Brady material no.: B-499 · Order reference: M7-84-499
• Applications: Wire & cable labelling, component and equipment labelling, electrical identification, warehouse marking, laboratory tubes/vials

Additional product details (summary from technical/specification tables)
Article Number: 174650
Order Reference: M7-84-499
Total Qty per Pack: 500 Label(s) / Box
Minimum Order Quantity: 1
Qty per Row: 1
Brand: Brady®
Qty per Roll: 500
Country of Origin: United States of America

Dimensions (selected values shown)
Size - Width (mm): 22.86
Size - Height (mm): 12.70
Max. Wire/Cable Diameter (mm): 6.07
Vertical Repeat (mm): 15.88
Vial/Tube (ml): 0.5 mL
Web Width (mm): 33.32

Material characteristics

• Brady Material No.: B-499
• Material type: Nylon Cloth (polyamide coated)
• Thickness: 0.166 mm
• Colour: White · Finish: Matt
• Adhesive: Permanent Acrylic (aggressive)
• Service temperature range: -40 °C to 90 °C
• Environment suitability: Autoclave, Freezer, Liquid Nitrogen, Cryogenic storage
• Material properties: Halogen-free (white version), alcohol-resistant, abrasion- and chemical-resistant, UV and weather resistant

Printing & compatibility

• Print technology: Thermal Transfer (ribbon required)
• Recommended ribbon series: R4300, R6000HF, R6200, R6900 (confirm ribbon suitability with selected printer)
• Max. characters per line: 18 · Max. lines of text: 5
• Smart Cell: Yes

Compliance & approvals

• UNSPSC code: 55121612
• RoHS: Compliant with 2011/65/EU with exemptions
• REACH SVHC status: Part does not contain an SVHC (Candidate List date: 04 February 2026)
• Approvals: UL recognised; CSA accepted; Halogen free (white material only)

Technical specifications

• Product name: Aggressive Adhesive Multi-Purpose Nylon Labels
• Part number / Order reference: M7-84-499
• Brady material number: B-499
• Pack quantity: 500 labels per box
• Printing method: Thermal transfer
• Recommended ribbons: R4300, R6000HF, R6200, R6900
• Key approvals: UL recognised, CSA accepted
