Laboratory labeler M510-KIT-UK-BWS

for hospitalselectricbarcode label

Product description
The M510 portable label printer kit includes a high-capacity Li‑ion battery and a licence for the Brady® Workstation suite. Designed for high-volume, field and facility labelling, the M510 prints edge-to-edge labels up to 38.10 mm wide and supports a wide range of materials for industrial identification tasks.

Key benefits

• Print edge-to-edge labels up to 38.10 mm with flexible text sizing
• Fast output: up to 38.10 mm/s to accelerate workflows
• Wide material compatibility: 250+ drop-in cartridges and 26+ high-performance materials
• Data entry via on-device QWERTY keyboard, separate numeric keypad or PC for accurate labelling
• Backlit full-colour LCD for use in low-light environments
• Durability: designed to withstand 1.2 m drops
• Includes Brady® Workstation licence for product, safety or lab identification workflows
• High-capacity battery prints up to 4,400 labels per charge (battery included in kit)

Key features

• Label types: Continuous and die-cut
• Applications: Asset tracking, Barcode labelling, PCB labelling, Component & equipment identification, Data/telecom labelling, Electrical labelling, Facility identification, Healthcare labelling, Inventory & inspection labelling, Laboratory labelling, Lean/5S, Safety identification, Warehouse marking, Wire & cable labelling
• Colour capability: Monochrome
• Maximum label width: 38.10 mm
• Print technology: Thermal transfer (300 dpi)
• Recommended daily usage: 1000 labels
• Stand-alone and peripheral printing modes

Technical specifications (selection)

• Article number: 322728
• Order reference: M510-KIT-UK-BWS
• Pack contents: 1 kit / box
• Minimum order quantity: 1
• Brand / Trade name: Brady® / M510
• Country of origin: Malaysia
• Dimensions (W x H x D): 146.05 mm x 95.25 mm x 254.00 mm
• Weight: 1.38 kg
• Display size: 71.12 mm (physical)
• Min. label height: 5.99 mm
• Supported materials: BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallised Polyester, Nylon Cloth, Polyester, Polyethylene Tag, Polypropylene, Reflective Tape, Repositionable Vinyl, Self-laminating Polyester/Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl Cloth, Water Dissolvable Paper
• Product colour: Blue, Grey
• Battery: Rechargeable Lithium-ion 2700 mAh (shipped in kit, not installed)
• Battery recharge time: 4 hours
• Auto shut-off: 10 minutes (user configurable)
• Built-in symbols: 480
• On-device language support: 24 languages including English, French, German, Spanish, Italian, Japanese, Chinese, Russian
• Connectivity: USB
• Cutter: Single-hand manual actuate, straight cut with label retention
• Display: Backlit full-colour LCD graphics
• Keyboard: Full QWERTY + numeric keypad
• Internal memory: 512 MB RAM, 256 MB Flash
• Barcode symbologies: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Data Matrix, QR code (additional via Brady® Workstation)
• Operating temperature: 4°C – 43°C
• Storage temperature: -18°C – 43°C
• Drop resistance: 1.2 m
• Print speed: 38.10 mm/s
• Print resolution: 300 dpi
• Max. print width: 36.58 mm; Max. liner width: 45.72 mm
• Max. print length: 99.06 cm
• Text sizes: 4–170 pt; Fonts: Brady Alpine, Brady Fixed Width
• Smart Cell: Yes
• Software compatibility: Brady® Workstation; Windows driver available

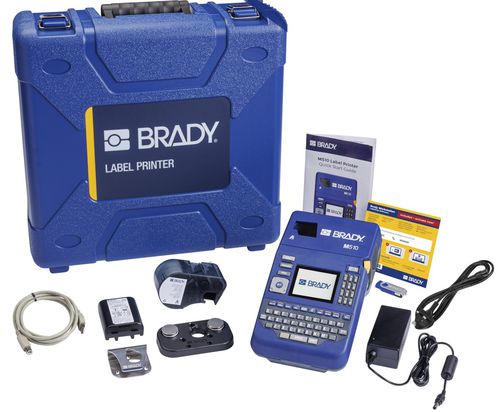

• Included in kit: M510 printer in hard case, rechargeable Li‑ion battery pack, AC adapter, B-595 vinyl label cartridge, Quick Start Guide, magnet, utility hook, USB cable, Brady® Workstation licence and USB drive with driver and manual
• Warranty: 2 years
• Compliance: CE, FCC, UKCA; RoHS 2011/65/EU; REACH: product contains an SVHC (Candidate List date: 04 Feb 2026)
