Hospital labeler M510-KIT-UK-BWS

electricbarcode labeldigital

Description
The ideal companion for your project workspace, the M510 label printer delivers high-quality labels in large volumes day after day. Whether in a laboratory, on site or in a facility, the printer performs reliably for industrial and professional labeling needs.

Main benefits

• Create edge-to-edge labels up to 38.10 mm wide with a wide range of font sizes.
• Print at speeds up to 38.10 mm/s to accelerate workflow.
• Support for more than 250 ready-to-use cartridges and over 26 high-performance materials for diverse applications.
• Accurate data entry via an intuitive full QWERTY keyboard, separate numeric keypad or connected PC.
• Backlit color LCD for easy labeling in low-light conditions.
• Durable design with 1.20 m drop resistance for field use.
• Includes a license for one Brady Workstation suite (Product & Wire ID, Safety & Facility ID or Lab ID).
• High-capacity lithium-ion battery for extended printing (up to 4,400 labels per charge, depending on battery supplied).

Key features (summary)

• Applications: barcode labeling, PCB/components/equipment, wire & cable, electrical, lab, Lean/5S, inspection/stock identification, healthcare/hospitals, telecom/datacom, facility identification, safety identification, general identification, warehouse marking, asset tracking.
• Continuous / die-cut: compatible
• PC-free printing: standalone and peripheral modes
• Color capability: monochrome
• Max label width: 38.10 mm
• Print resolution: 300 dpi
• Print technology: thermal transfer
• Recommended daily usage: 1,000 labels (estimated)

Included

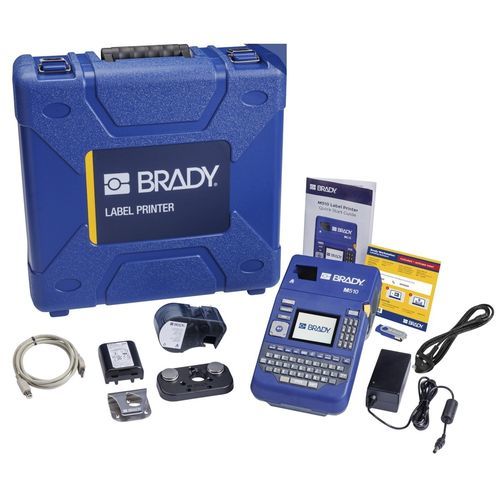

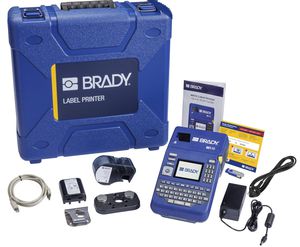

M510 label printer delivered in a hard carrying case containing: rechargeable lithium-ion battery, AC adapter, vinyl label cassette (B-595), quick start guide, magnet, hook, USB cable, license for one Brady Workstation suite and USB key with driver and manual.

Technical specifications

• Item number: 322724
• Order reference: M510-KIT-EU-BWS
• Total quantity per package: 1 Kit / Box
• Minimum order quantity: 1
• Commercial name: M510
• Country of origin: Malaysia
• Dimensions (W x H x D): 146.05 mm x 95.25 mm x 254.00 mm
• Weight: 1.38 kg
• Display size: 71.12 mm
• Minimum label height: 5.99 mm
• Max print width: 38.10 mm (max media width 45.72 mm)
• Effective max print width: 36.58 mm
• Max print length: 99.06 cm
• Print speed: 38.10 mm/s
• Text sizes: 4 - 170 pt
• Font styles: Brady Alpine, Brady Fixed Width
• Symbologies: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Data Matrix, QR code (and more via Brady Workstation)
• Internal memory: 512 MB RAM, 256 MB Flash
• Keyboard type: QWERTY full keyboard; PC input supported
• On-screen indicators: battery life, remaining supplies
• Drop test: resistant to 1.2 m drops
• Battery: rechargeable lithium-ion, 2700 mAh; supplied in kit; charge time ≈ 4 hours (0–100%)
• Auto power-off: 10 minutes (user configurable)
• Connectivity options: USB (PC / peripheral)
• Power: AC adapter + rechargeable battery; voltage 110 - 240 V
• Operating temperature: 4°C - 43°C
• Operating humidity: 20% - 90% (non-condensing)
• Storage temperature: -18°C - 43°C
• Storage humidity: 10% - 90% (non-condensing)
• Cutter type: manual one-hand activation, label retention, straight cut
• Print features: print preview, banners, multiple copies, date/time, lists, auto-sizing, mirror/vertical print, justification, fixed length, rotation, serialization
• Supported media examples: polyethylene, water-soluble paper, various polyesters, BradyGrip® Polyester, FreezerBondz™ Polyester, metallized polyester, heat-shrink polyolefin, polypropylene, reflective tape, nylon/vinyl fabrics, self-laminating vinyl, tamper-evident vinyl, removable vinyl, vinyl rigid, etc.
• Compatible consumable prefixes (examples): M4-, M4C-, M5-, M5C-
• Number of standard references in stock: more than 250
• Interface languages: German, English (US), Bulgarian, Chinese (trad. & simp.), Croatian, Danish, Spanish (Mexico), Estonian, Finnish, French, Hungarian, Italian, Japanese, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Czech, Turkish
• Included: battery shipped in box (not installed); warranty: 2 years
• Compliance / approvals: CE, FCC, UKCA; RoHS compliant; REACH (SVHC notice in manual)

Warranty
2 years
