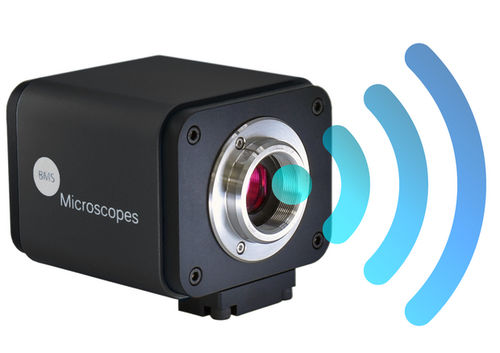

Microscope camera 76604K8MPA25

digital3D4K

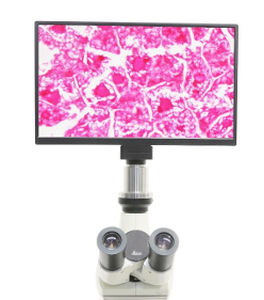

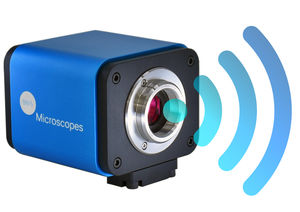

Upgrade BMS microscopes with an advanced camera that combines LAN, WiFi, USB 3.0 and HDMI outputs in one system. The stable LAN connection ensures smooth high-speed streaming for teaching and collaboration, while WiFi enables instant sharing on mobile devices. USB 3.0 and HDMI provide flexible options for direct display or computer capture. With an 8MP Sony STARVIS 2 sensor, up to 4K 75fps output and convenient storage via SD card or USB drive, this camera delivers powerful, reliable performance for education, research and medical use. Key Features: Resolution: 5MP for detailed imaging Sensor: High-sensitivity Sony STARVIS back-illuminated CMOS sensor for bright, sharp and true-to-life images Pixel Size: 2.0x2.0 µm Video: 3840x2160 72 fps (HDMI) / 3840x2160 60 fps (WiFi) for smooth live viewing WiFi: Stream live video directly to computer or mobile device G Sensitivity: 3541 mV @ 1/30 s Dark Signal: 0.15 mV @ 1/30 s Exposure Range: 0.019 ms – 1000 ms Image Processing: Advanced ISP with automatic exposure, gain, white balance, color adjustment, sharpness, 3D denoising and Ultra-Fine Color Engine Multi Output Options: HDMI, LAN, USB 3.0, WiFi and SD card for flexible display, streaming and storage Mount: Standard C-mount interface for seamless integration with BMS microscopes Supported OS: Microsoft® Windows® 11 and higher, macOS & Linux. Still compatible with Windows 7/8/10, but for best performance the latest update is recommended, since Microsoft and we only support Windows 11 and higher. The BMS_pix3 software is available as a full version for Windows and a light version for Linux and macOS.
