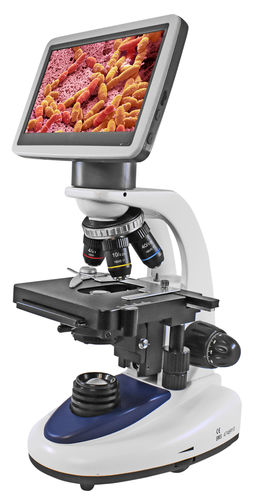

Microscope camera 764799digitalCMOS
Add to favorites
Compare this product
Characteristics
- Applications
- for microscopes
- Technology
- digital
- Sensor type
- CMOS
Description
Sensor size - 1/2.8 Inch
Pixel size - 2.9 µm (H) × 2.9 µm (V)
Resolution ratio - 1844 X 1080
Exposure control - Auto / Manual
Power Frequency - DC / 50Hz / 60Hz
White balance control - Auto WB / Once WB / Manual
Cross-line - 4 Sets
Calibration and measurement - Support Calibrating and line measuring
Snap - Button snap / timed snap
Video recording - Supported
Frame rate - 30FPS@1844*1080
Image adjusting Parameters - Saturation/ Hue / Brightness / Contrast / Monochrome / Flip vertical / Flip horizontal / FOV
FOV - 20%-100% of Eyepiece FOV - 20%-100% of C-Mount FOV
Storage for snap and record - TF card
Firmware Software Update - Supported
Connecting way - Microscope head Socket - C-Mount Socket
Overall dimensions - 182mm*125mm*85mm
