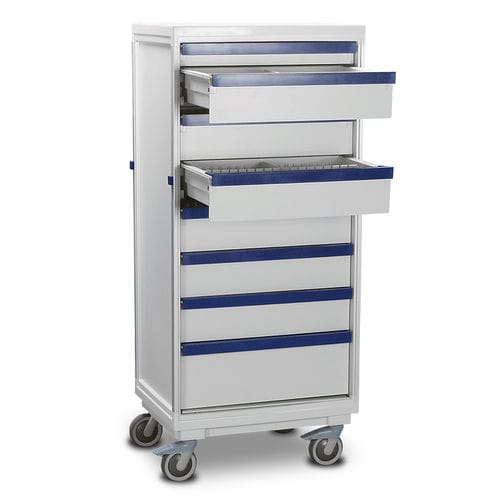

Medical trolley 4B1VD09/A

for general purposesstorageplastic

FEATURES

• Mobile storage carts equipped with Vario Drawers, supplied with 600 mm and 400 mm trays
• Modular layout: single, double and treble column configurations across multiple heights
• Lightweight, easy-clean construction for clinical and industrial environments
• Injection-moulded ABS top and chassis, aluminium corner profiles, laminate sides and back
• Insertions: Type B (400 mm)
• 125 mm castors, two with braking

DIMENSIONS (w x d x h)

• Single Column - 662 x 494 x Height
• Double Column - 1324 x 494 x Height
• Treble Column - 1986 x 494 x Height

STANDARD COLOURS

• Body / Drawers - Grey
• Drawer Handle - Blue

AVAILABLE CODES / PRODUCT VARIANTS
Code | Description | Overall Dimensions (W x D x H)
4B1VD09/A | Vario Drawers - 1 Column, 905mm High, Type B, Kit A | 662 x 494 x 905mm
4B1VD09/B | Vario Drawers - 1 Column, 905mm High, Type B, Kit B | 662 x 494 x 905mm
4B1VD09/C | Vario Drawers - 1 Column, 905mm High, Type B, Kit C | 662 x 494 x 905mm
4B1VD10/E | Vario Drawers - 1 Column, 1055mm High, Type B, Kit E | 662 x 494 x 1055mm
4B1VD10/F | Vario Drawers - 1 Column, 1055mm High, Type B, Kit F | 662 x 494 x 1055mm
4B1VD12/H | Vario Drawers - 1 Column, 1205mm High, Type B, Kit H | 662 x 494 x 1205mm
4B1VD15/I | Vario Drawers - 1 Column, 1503mm High, Type B, Kit I | 662 x 494 x 1503mm
4B1VD15/J | Vario Drawers - 1 Column, 1503mm High, Type B, Kit J | 662 x 494 x 1503mm


NOTES
Offered as a modular cart system with single, double or treble column configurations and multiple kit/height options. Trays supplied in 600 mm and 400 mm sizes. Material, profile and castor details listed below.


TECHNICAL SPECIFICATIONS

• Brand: Bristol Maid
• Range: ScanCell® Carts
• Product type: Mobile storage cart with Vario Drawers
• Top / chassis: Injection-moulded ABS
• Corner profiles: Aluminium
• Sides & back: Laminate
• Insertions: Type B (400 mm)
• Trays supplied: 600 mm & 400 mm
• Castors: 125 mm, 2 with braking
• Configurations: Single, Double, Treble column
• Standard body/drawer colour: Grey; Drawer handle: Blue
• Typical overall widths: Single 662 mm, Double 1324 mm, Treble 1986 mm
• Typical overall depth: 494 mm
• Available heights (examples from variants): 905 mm, 1055 mm, 1205 mm, 1503 mm
