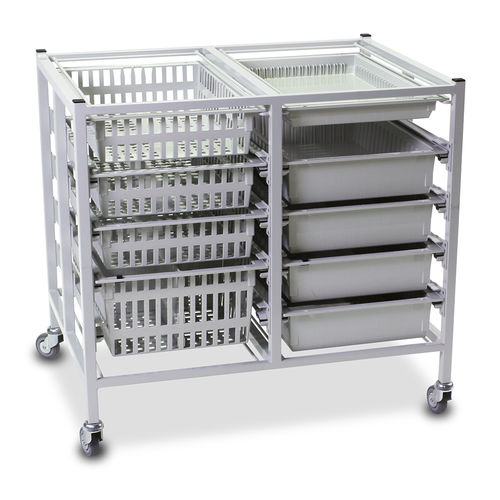

Medical trolley 4A1DSTM

medicine distributionmetalstainless steel

OVERVIEW
Distribution trolleys designed to accommodate 600 x 400 mm trays and baskets. Available in mild steel or 304 grade stainless steel. Runners permit tray access from either side; single- and double-column configurations available.

FEATURES

• Compatible with 600 x 400 mm trays & baskets
• Construction: mild steel or 304 grade stainless steel
• Runners allow trays to be accessed from either side (4 stops required per tray/basket)
• Type A - 600 mm insertion
• Type B - 400 mm insertion
• Trays & baskets can be supported on the upper & lower frame (optional solid grade laminate worktop)
• 75 mm pressed steel castors

DIMENSIONS (W x D x H)

• Single column, Type A - 460 x 655 x 850 mm
• Double column, Type A - 895 x 655 x 850 mm
• Single column, Type B - 660 x 455 x 850 mm

STANDARD COLOURS

• Paint: Grey White

PRODUCT CODES / RANGE

• 4A1DSTM — Distribution Trolley - 1 Column, Type A, Mild Steel — 460 x 655 x 850 mm
• 4A2DSTM — Distribution Trolley - 2 Column, Type A, Mild Steel — 895 x 655 x 850 mm
• 4B1DSTM — Distribution Trolley - 1 Column, Type B, Mild Steel — 660 x 455 x 850 mm
• 4A1DSTS — Distribution Trolley - 1 Column, Type A, Stainless Steel — 460 x 655 x 850 mm
• 4A2DSTS — Distribution Trolley - 2 Column, Type A, Stainless Steel — 895 x 655 x 850 mm
• 4B1DSTS — Distribution Trolley - 1 Column, Type B, Stainless Steel — 660 x 455 x 850 mm

TECHNICAL SPECIFICATIONS

• Materials: mild steel or 304 grade stainless steel
• Tray compatibility: 600 x 400 mm trays & baskets
• Tray insertion types: Type A (600 mm) and Type B (400 mm)
• Tray access: runners allow access from either side; 4 stops required per tray/basket
• Tray support: upper & lower frame; optional solid grade laminate worktop
• Castors: 75 mm pressed steel
• Configurations: single-column and double-column (see product codes and dimensions)
