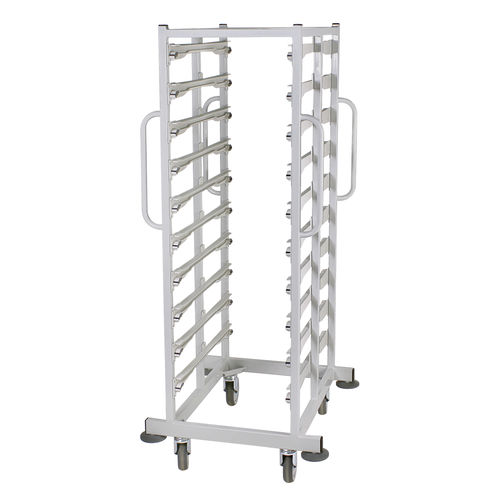

Transfer trolley 4A1OTTM

transferstainless steelmetal

FEATURES

• Compatible with 600 x 400 mm trays and baskets
• Available in mild steel or 304 stainless steel
• Guide runners allow tray access from either side (4 stops required per tray/basket)
• Type A — 600 mm insertion
• Push handles located at both ends
• Ring buffers to protect the trolley and building fabric
• Castors:
  • Single/Double column: 125 mm pressed steel castors, 2 with braking
  • Treble column: 200 mm heavy-duty pressed steel castors, 2 fixed + 2 swivel with braking

DIMENSIONS (W x D x H)

• Single Column, Type A - 665 x 725 x 1555 mm
• Double Column, Type A - 1100 x 725 x 1555 mm
• Treble Column, Type A - 1535 x 725 x 1635 mm

STANDARD COLOURS

• Paint finish: Grey White

PRODUCT CODES / OVERVIEW
Code | Description | Overall Dimensions (W x D x H)
4A1OTTM | Single Column, Type A, Mild Steel | 660 x 720 x 1545 mm
4A2OTTM | Double Column, Type A, Mild Steel | 1095 x 720 x 1545 mm
4A3OTTM | Treble Column, Type A, Mild Steel | 1535 x 720 x 1630 mm
4A1OTTS | Single Column, Type A, Stainless Steel | 660 x 720 x 1545 mm
4A2OTTS | Double Column, Type A, Stainless Steel | 1095 x 720 x 1545 mm
4A3OTTS | Treble Column, Type A, Stainless Steel | 1535 x 720 x 1545 mm


TECHNICAL SPECIFICATIONS

• Compatible tray size: 600 x 400 mm
• Materials: Mild steel or 304 stainless steel options
• Insertion type: Type A (600 mm insertion)
• Tray access: Guide runners accessible from either side; 4 stops required per tray/basket
• Castors (by column configuration): 125 mm pressed steel (single/double) or 200 mm heavy-duty pressed steel (treble)
• Castor braking: Single/Double — 2 with braking; Treble — 2 fixed, 2 swivel with braking
• Handles: Push handles at both ends
• Protection: Ring buffers to protect trolley and building fabric
• Finish: Standard paint Grey White (stainless variants supplied in stainless finish)
