Transfer cabinet BPod

coolingwarmingrefrigerated

Overview

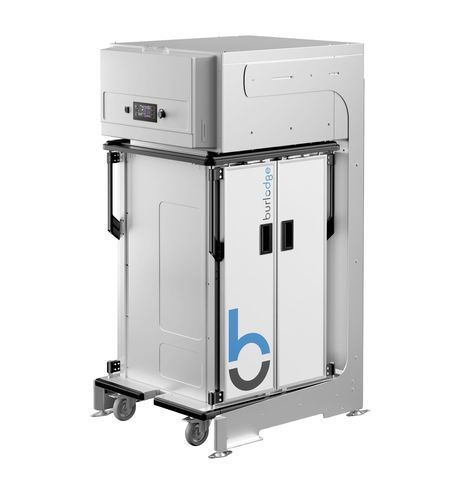

The BPod Class-e is a roll-in, roll-out nesting tray delivery system consisting of a Base Station for heating and cooling and a Pod Shuttle for transporting food trays. Designed for Cook-Serve and Cook-Chill workflows, it provides ergonomic handling and full tunnel washability.

Operational

• Roll-in/roll-out nesting eliminates the need to open or close doors during docking
• Access trays even when the Pod Shuttle is nested in the Base Station
• 2-door tunnel-washable Base Station model and fully tunnel-washable Pod Shuttle with no overlapping surfaces for thorough cleaning
• 4-door Pod Shuttle option with doors compliant to EN 60335-2-89 (easily opened from inside)
• DIN H2 sanitation compliance: no internal joints, gaskets or crevices to prevent dirt accumulation
• Ergonomically designed trays with configurable hot and cold sections; available in two sizes
• Base Stations can be installed back-to-back or side-by-side to suit service layouts
• Wide range of options and accessories to match different service models

Ergonomics

• Smallest footprint when nested for space-efficient storage
• Controls positioned for easy reach and visibility
• Four-door Pod Shuttle minimizes door swing and is suitable for tight spaces
• Six-wheel configuration improves manoeuvrability and reduces turning circle
• Lightweight, manoeuvrable Pod Shuttle for easy handling
• Colour-coded gaskets clearly indicate hot and cold tray sections

Control

• Touch control panel with pictorial operator interface, visible when Pod is nested
• IQ-Control App 2.0 for programming and HACCP monitoring via Bluetooth
• Integrated food probing capability
• Built-in HACCP monitoring via IQ-Control 2.0 or remote BCloud monitoring
• Built-in status lights indicating operating mode (heating, cooling, alarm)

Construction

• Pod Shuttle fully tunnel-washable with no overlapping surfaces
• Efficient vertical airflow and convection heating for broader menu options and beverage regeneration
• Stainless steel construction with high-density CFC/HFC/HCFC-free insulation; lightweight and manoeuvrable
• Convection heating compatible with high-heat dishware including china, reusable plastics, single-use paper and aluminium
• Adjustable Base Station to accept Pods of different heights
• Energy-efficient design using recyclable materials and R290 low-GWP refrigeration gas

Tech sheet (table)
Model | Dimensions L x D x H (mm / inches) | Tray Capacity | Tray Pitch (mm / inches)
BPod S | 1016 x 889 x 1874 / 40 x 35 x 73.8 | |
BPod T | 1016 x 889 x 2114 / 40 x 35 x 83.2 | |
Pod S | 919 x 792 x 1354 / 36.2 x 31.2 x 53.3 | 20 | 92 / 3.6
Pod S | 919 x 792 x 1354 / 36.2 x 31.2 x 53.3 | 24 | 80 / 3.15
Pod T | 919 x 792 x 1594 / 36.2 x 31.2 x 62.8 | 26 | 92 / 3.6
Pod T | 919 x 792 x 1594 / 36.2 x 31.2 x 62.8 | 30 | 80 / 3.15

Technical specifications

• System type: Base Station and Pod Shuttle nesting tray delivery system (roll-in, roll-out)
• Intended applications: Cook-Serve and Cook-Chill
• Sani-clean: Pod Shuttle fully tunnel-washable; DIN H2 sanitation compliance; no internal joints, gaskets or crevices
• Door options: 2-door tunnel-washable Base Station; 4-door Pod Shuttle option (doors compliant with EN 60335-2-89)
• Controls: Touch panel with pictorial interface; IQ-Control App 2.0 (Bluetooth) and HACCP monitoring; built-in status lights
• Construction: Stainless steel; high-density CFC/HFC/HCFC-free insulation; adjustable Base Station; efficient vertical airflow; convection heating
• Energy & refrigerant: Energy-efficient design; recyclable materials; R290 low-GWP refrigeration gas
• Manoeuvrability: Six-wheel configuration for smaller turning circle; lightweight Pod Shuttle
• Models & dimensions: BPod S – 1016 x 889 x 1874 mm (40 x 35 x 73.8 in); BPod T – 1016 x 889 x 2114 mm (40 x 35 x 83.2 in)
• Pod dimensions & capacities: Pod S – 919 x 792 x 1354 mm (36.2 x 31.2 x 53.3 in) – 20 or 24 trays (tray pitch 92 mm / 3.6 in or 80 mm / 3.15 in); Pod T – 919 x 792 x 1594 mm (36.2 x 31.2 x 62.8 in) – 26 or 30 trays (tray pitch 92 mm / 3.6 in or 80 mm / 3.15 in)
