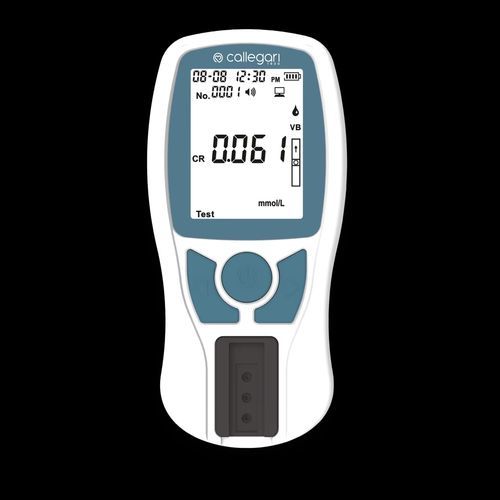

Photometric POC analyzer CliniCrea

diagnosticcreatininecapillary blood

The DEVICE Is an in vitro diagnostic device for quantitative creatinine determination from a simple capillary blood sample. Execution in less than 5 minutes 35 μL whole capillary blood CREATININE IMPORTANCE Creatinine is an important renal health indicator as an easily measurable muscle metabolism by product excreted unchanged by kidneys. Creatinine quantification aids monitoring muscular and renal well-being. REAGENT cartridges TECHNICAL CHARACTERISTICS Measuring principle Reflectance photometer Time to analyze Approx. 5 minutes Measurement range 0.044 mmol/L - 1,320 mmol/L 0.50 mg/dL - 14.93 mg/dL Champ Whole blood Sample volume 35 μl Feeding 3 x 1.5 V AAA batteries Measurement unit mmol/L or mg/dL Memory 500 Test Automatic shutdown After 5 minutes of inactivity Sizes 135(w) mm x 66(d) mm x 19(h) mm Weight 90 g Transportation and storage conditions 0 °C - 55 °C; ≤ 90% relative humidity Working conditions 10 °C - 35 °C; ≤ 80% umidità relativa Storage and transport conditions of the test strip and on the optical control strip 2 °C - 30 °C; ≤ 90% relative humidity Compliance CE mark
