Acrylic dental material UCAN Mill

CAD/CAMfor dental prosthesesfor denture making

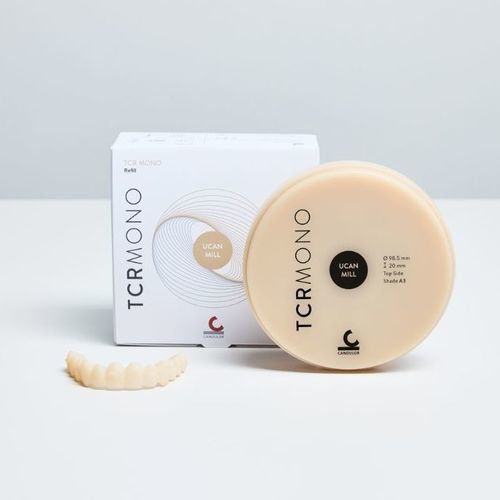

UCAN Mill offers three different products in proven Candulor quality: the tooth-colored disks TCR Mono and TCR Multi as well as the gingiva-colored denture base disks XPLEX Base. UCAN Mill TCR Mono TCR Mono is a tooth-colored, monochromatic stained disk for the CAD/CAM technology. The disks are made of TCR material (TwinCrossedResin), which has been available on the market for over 40 years. TCR material is a highly modified type of polymethyl methacrylate (PMMA) variant in which both the polymer and the matrix are evenly cross-linked. - Technical data - Thickness: 20 mm - Diameter: 98.5 mm - Shade range - A1, A2, A3, A3.5, B1, B3, C2, D2, BL3 - Features - Good abrasion - Good plaque resistance - Types of restorations - Single teeth - Tooth segments UCAN Mill TCR Multi TCR Multi is a multichromatic colored disk consisting of three layers. It features a harmonious color gradient to achieve a high level of esthetics in the individually milled tooth segments without subsequent characterization. With the tooth lines PhysioSet TCR and PhysioSelect TCR, which also consist of the proven TCR material, hybrid work can be created from a single material family. - Technical data - Thickness: 20 mm - Diameter: 98.5 mm - Shade range - A1, A2, A3, A3.5, B1, B3, C2, D2, BL3 - Features - Highly esthetic due to natural translucency - Appealing surface design and harmonious color gradient - Types of restorations - Single teeth - Tooth segments UCAN Mill XPLEX Base XPLEX Base is a PMMA disk for fabricating denture bases for removable dentures using the abrasive manufacturing process. The disks are made of the proven XPLEX material, a high-impact modified PMMA with high-impact quality. - Technical data - Thickness: 30 mm - Diameter: 98.5 mm - Shade range - 1 Soft Pink – transparent, not veined - 5 Pink – transparent, veined - 34 Original Pink – semi-opaque, veined - Features - High-impact strength - Low plaque adhesion and discoloration - Types of restorations - Full dentures - Partial dentures - Implant-supported dentures - Tooth-supported dentures UCAN Bond XPLEX Bond XPLEX Bond is a PMMA-based composite material for bonding resin-based teeth and segments into a prefabricated denture base. The kit contains 10 pre-dosed monomer and polymer bottles to achieve an optimal mixture. - Feature - Self-curing - Applications - Connecting prefabricated teeth with a milled or printed base - Connecting milled teeth with a milled or printed base - Set contents - XPLEX Bond polymer (10 items) - XPLEX Bond monomer (10 items) - XPLEX Bond Modelling Liquid (1 item) - Application syringes (10 items) - Cannulas (10 items)
