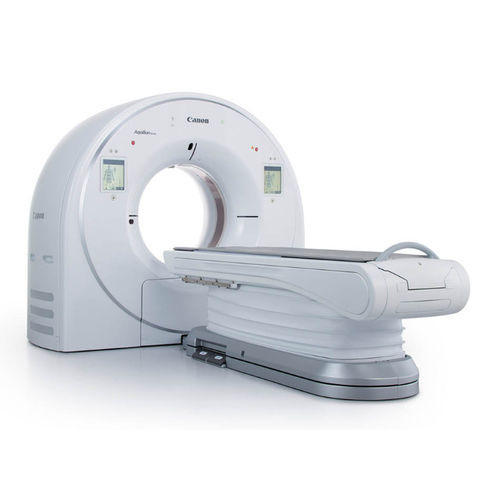

Whole-body tomography CT scanner Aquilion Serve

80-slicewide-boreAI-assisted

Overview
The Aquilion Serve CT is designed for efficient, consistent clinical imaging with low-dose capability. It combines advanced detector and reconstruction technology with AI-enabled workflow automation to streamline exams and support high patient throughput while maintaining diagnostic image quality.

System highlights

• PUREVision detector: 80 rows, 0.5 mm
• Rotation speed: 0.5 s / 0.35 s (option dependent)
• 80 cm gantry bore and wide patient access
• Table width 47 cm; minimum table height 33 cm
• Tech Assist Lateral Slide: 17 cm (8.5 cm left/right, option)
• Couch capacity: 315 kg
• Up to 70 fps (option)
• kV selection: 80 / 100 / 120 / 135 kV
• 50.4 kW generator
• SilverBeam filter for ultra-low dose protocols
• AiCE Whole Body Deep Learning Reconstruction (DLR)
• Minimum installation footprint: 14.8 m2 (depending on configuration)

Improve Confidence

• Enhanced image quality and noise reduction with AiCE DLR for reliable diagnostic reading
• Consistent clinical outcomes across examinations
• Capability to image multiple anatomical regions within one breath-hold and optimized contrast dose per approved labeling

Enhance Experience

• Wide 80 cm gantry and low table height to improve patient access and comfort
• Built-in positioning cameras and gantry touch panels for improved setup and monitoring
• AI-assisted 3D Landmark Scan and Anatomical Landmark Detection (ALD) to standardize scan planning

Drive Efficiency

• INSTINX AI-assisted workflow automation reduces workflow steps and simplifies staff training
• Ready-to-scan workflows for rapid clinical adoption
• Automated QA phantom scanning with analysis to maintain consistent performance
• Compact, energy-efficient design to fit most existing CT rooms and reduce infrastructure requirements

Technical specifications

• Model: Aquilion Serve
• Detector: PUREVision, 80 rows, 0.5 mm
• Rotation speed: 0.5 s / 0.35 s (option dependent)
• Gantry bore: 80 cm
• Table width: 47 cm
• Table minimum height: 33 cm
• Tech Assist Lateral Slide: 17 cm (8.5 cm left/right, option)
• Couch capacity: 315 kg (depending on configuration)
• Frame rate: Up to 70 fps (option)
• kV options: 80, 100, 120, 135 kV
• Generator: 50.4 kW
• Filters: SilverBeam filter for ultra-low dose protocols
• Reconstruction: AiCE Advanced intelligent Clear-IQ Engine (Whole Body DLR)
• Workflow: INSTINX AI-assisted automation, 3D Landmark Scan, Anatomical Landmark Detection (ALD)
• Minimum installation footprint: 14.8 m2 (depending on configuration)
• Designed for rapid exams, reduced scan times and simplified training
• Notes: Items marked with * in system documentation indicate optional features depending on configuration.
