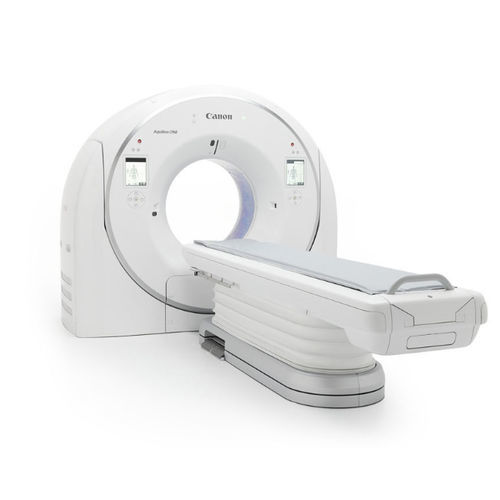

Whole-body tomography CT scanner Aquilion ONE / INSIGHT Edition

for cardiovascular tomography320-slicewide-bore

Overview
The Aquilion ONE / INSIGHT Edition is a wide-area CT scanner designed for fast, high-resolution volumetric imaging and AI-assisted workflow automation (INSTINX). The system combines advanced hardware (CoolNovus X‑ray tube, PURE INSIGHT detector) with Deep Learning Reconstruction technologies (PIQE 1024, AiCE, DLR Spectral) and motion compensation (CLEAR Motion) to support confident diagnosis across clinical applications.

System highlights

• 16 cm z-axis coverage (wide‑area acquisition)
• 80 cm gantry bore for improved patient access
• PURE INSIGHT detector — 320 rows, 0.5 mm
• CoolNovus X‑ray tube and 100 kW generator
• 0.24 s rotation speed and up to 80 fps frame rate
• Tech Assist Lateral Slide 17 cm (±8.5 cm)
• Gantry tilt ±30° and 315 kg couch capacity
• Minimum installation footprint: 19.38 m²

Key technical features

• Kv selection: 70 / 80 / 100 / 120 / 135 kV
• Up to 1400 mA output
• Ultra‑low dose options with SilverBeam filter
• PIQE 1024 Deep Learning Reconstruction (Super Resolution)
• CLEAR Motion DLR for motion compensation (cardiac, lung)
• AiCE Whole Body DLR and DLR Spectral capabilities
• Gantry illumination and integrated positioning cameras

Improve confidence

• Super Resolution with PIQE 1024 improves delineation of small structures without extra dose
• Wide-area one‑rotation CT enables head‑to‑toe and expanded patient coverage
• Ultra‑fast volumetric acquisitions reduce motion artifacts and exam time

Enhance experience

• Wide, open 80 cm gantry and flared design for patient access and comfort
• 47 cm table width with low table height (33 cm) for easy patient transfer
• INSTINX AI-assisted automation (3D Landmark Scan, Anatomical Landmark Detection) for consistent positioning
• Gantry touch panel controls and built‑in positioning cameras for streamlined operation

Drive efficiency

• Integrated AI Super Resolution across studies for reliable high‑quality images
• AI-assisted workflows reduce operator steps and training time
• Automated QA phantom scanning with analysis for reproducible performance
• Hybrid drive energy regeneration lowers power consumption and installation impact

Technical specifications

• Model: Aquilion ONE / INSIGHT Edition
• Detector: PURE INSIGHT, 320 rows, 0.5 mm
• Z‑axis coverage: 16 cm
• Rotation speed: 0.24 s
• Gantry bore: 80 cm
• Table: 47 cm width, low height 33 cm
• Table lateral slide: Tech Assist Lateral Slide 17 cm (±8.5 cm)
• Table capacity: 315 kg (695 lbs)
• Gantry tilt: ±30°
• Maximum frame rate: up to 80 fps
• Minimum installation footprint: 19.38 m²
• kV options: 70 / 80 / 100 / 120 / 135 kV
• Maximum mA: up to 1400 mA
• Generator: 100 kW
• Dose reduction features: SilverBeam filter, AiCE Whole Body DLR, DLR Spectral
• Advanced reconstruction & motion correction: PIQE 1024 DLR, CLEAR Motion
• Additional: CoolNovus X‑ray tube, Gantry Illumination, INSTINX AI workflow automation
