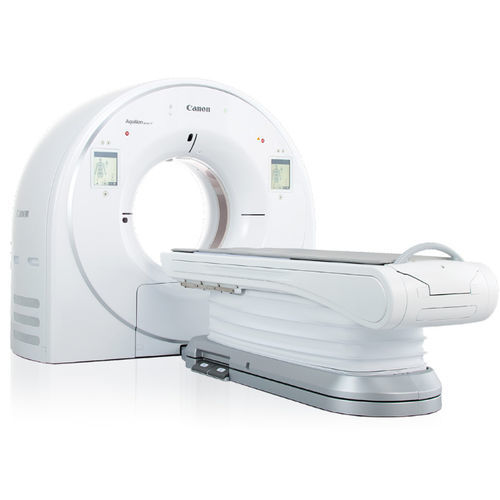

Whole-body tomography CT scanner Aquilion Serve SP

for cardiovascular tomography80-slicewide-bore

Overview
The Aquilion Serve SP from Canon Medical is a high-performance CT scanner engineered for routine to complex clinical workflows, combining AI-driven reconstruction and automated tools to deliver consistent, low-dose, high-resolution imaging.

System highlights

• PUREVision detector: 80 rows, 0.5 mm
• Rotation time: 0.35 s
• Gantry bore: 80 cm
• Table width: 47 cm; low table height: 33 cm
• Tech Assist Lateral Slide: 17 cm (8.5 cm left/right) (option)
• Couch capacity: up to 315 kg / 694 lbs (configuration-dependent)
• Frame rate up to 70 fps (option)
• kV options: 80 / 100 / 120 / 135 kV; 72 kW generator
• Super Resolution PIQE 1024 and AiCE Deep Learning Reconstruction
• Ultra-low dose capability with SilverBeam filter
• Minimum installation footprint: from 14.8 m² (depends on configuration)

Clinical benefits

• AI-enhanced image quality for clear diagnostic confidence across anatomical regions (pediatric, bariatric, cardiac)
• Supports lung cancer screening and other low-dose protocols while preserving image detail
• Enables multi-region acquisitions with a single breath-hold and injection (configuration-dependent)

Patient experience

• Wide, flared 80 cm gantry and low table height for improved access and patient comfort
• 47 cm comfortable table for secure positioning
• AI-assisted 3D Landmark Scan and Anatomical Landmark Detection for consistent planning
• Gantry touch panel controls and integrated positioning cameras

Operational efficiency

• INSTINX AI-assisted workflow automation reduces steps and training time
• Integrated AI-powered reconstruction for consistent throughput and image quality
• Automated phantom QA with step-by-step analysis
• Compact design and moderate power needs ease installation in existing CT rooms

Technical specifications

• Detector: PUREVision, 80 rows, 0.5 mm
• Rotation speed: 0.35 s
• Gantry bore: 80 cm; table width: 47 cm; table low height: 33 cm
• Tech Assist Lateral Slide: 17 cm (option)
• Table/couch capacity: up to 315 kg / 694 lbs
• Frame rate: up to 70 fps (option)
• kV selection: 80 / 100 / 120 / 135 kV; generator: 72 kW
• Dose reduction: SilverBeam filter, AiCE DLR, PIQE 1024 (option)
• Workflow: INSTINX automation, Anatomical Landmark Detection (ALD)
• Minimum installation area: from 14.8 m² (configuration-dependent)
