Traumatology instrument kit

orthopedic surgerysterilecustomizable

Product Overview

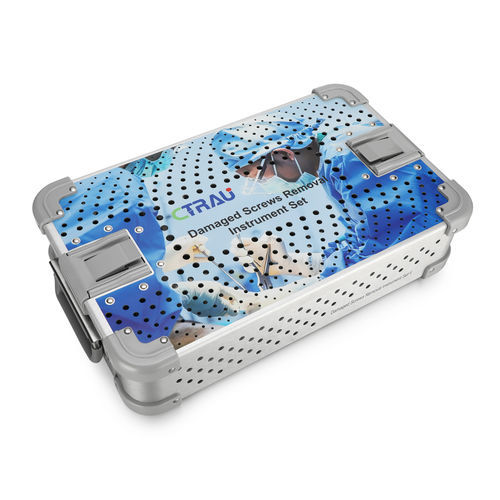

This instrument set is intended for removal of trauma implants and extraction of broken or damaged screws from the body during surgical procedures. It provides a comprehensive range of drivers and extractors to address multiple screw head types and diameters commonly encountered in trauma surgery. Instruments are manufactured from medical-grade materials and the set is supplied in a sterilization tray (XT01003). The product is produced under CE MDR and FDA requirements.

Set list
Item | Ref code | Description
1 | 3090.11011 | Quick Coupling Handle
2 | 0182.11010 | T-type Handle, Small
3 | 0182.11020 | Quick Coupling Connector
4 | 3082.07014 | Hex Screwdriver, SW1.5
5 | 3082.07015 | Hex Screwdriver, SW2.0
6 | 3082.07016 | Hex Screwdriver SW2.5
7 | 3082.07017 | Hex Screwdriver, SW3.0
8 | 3082.07018 | Hex Screwdriver, SW3.5
9 | 3082.07019 | Hex Screwdriver, SW4.0
10 | 3082.07023 | Hex Screwdriver, SW4.5
11 | 3082.07024 | Hex Screwdriver, SW5.0
12 | 3082.07025 | Torx Screwdriver, T4
13 | 3082.07026 | Torx Screwdriver, T6
14 | 3082.07027 | Torx Screwdriver, T8
15 | 3082.07028 | Torx Screwdriver, T10
16 | 3082.07029 | Torx Screwdriver, T15
17 | 3082.07033 | Torx Screwdriver, T20
18 | 3082.07034 | Torx Screwdriver, T25
19 | 3082.07035 | Torx Screwdriver, T30
20 | 3082.07036 | Torx Screwdriver, Ø2.1
21 | 3082.07037 | Torx Screwdriver, Ø2.6
22 | 308207038 | Torx Screwdriver, Ø3.1
23 | 3082.07039 | Torx Screwdriver, Ø3.7
24 | 3082.07040 | Cross Screwdriver, 0.5/Ø2.5
25 | 3082.07041 | Cross Screwdriver, 0.5/Ø3.5
26 | 3082.07042 | Square Screwdriver, SW1.2
27 | 3082.07043 | Square Screwdriver, SW1.5
28 | 3082.07044 | Flat Head Screwdriver, 0.5
29 | 5082.07045 | Flat Head Screwdriver, 0.8
30 | 3082.07046 | Sleeve Screwdriver, SW6.0
31 | 3082.07047 | Sleeve Screwdriver, SW7.0
32 | 3082.07048 | Sleeve Screwdriver, SW8.0
34 | 3082.07049 | Sleeve Screwdriver, Ø8/7.2
36 | 3082.07064 | Easyout, SW1.5
38 | 3082.07065 | Easyout, SW2.0
40 | 3082.07066 | Easyout, SW2.5
42 | 3082.07067 | Easyout, SW2.5, Thin
44 | 3082.07068 | Easyout, SW3.0
46 | 3082.07069 | Easyout, SW3.5
48 | 3082.07070 | Easyout, SW4.0
50 | 3081.01040 | Alloy Drill, Ø4.0
52 | 3081.01041 | Alloy Drill, Ø6.0
54 | 3082.07053 | Screw Removal, Ø3.5/Ø4.0
56 | 3082.07054 | Screw Removal, Ø4.5/Ø5.0
58 | 3082.07055 | Screw Removal, Ø6.5
60 | 3082.07050 | Trephine, Ø1.5
62 | 3082.07051 | Trephine, Ø2.0
64 | 3082.07052 | Trephine, Ø2.7
65 | 3082.07030 | Trephine Connecting Handle，Thread Needle, Trephine, Ø3.5/Ø4.0
66 | 3082.07031 | Trephine Connecting Handle，Thread Needle, Trephine, Ø4.5/Ø5.0
67 | 3083.07032 | Trephine Connecting Handle，Thread Needle, Trephine, Ø6.5
69 | 3082.0101 | Awl
71 | 181.12010 | Sharp Hook
73 | 3081.01011 | Screw Removal Handle
75 | 3081.01021 | Screw Removal Sleeve
77 | 3081.02031 | Screw Removal Clamp, Ø3.5-Ø5.0
79 | 3081.02032 | Screw Removal Clamp, Ø2.0-Ø3.5
81 | 3081.02033 | Screw Removal Clamp, Ø5.5-Ø7.3
83 | 3081.05014 | Screw Removal Forceps
85 | 3090.01011 | Osteotome
87 | XT01003 | Sterilization Tray

Technical specifications

• Intended use: removal of trauma implants and extraction of broken implants from the body during surgery.
• Set composition: comprehensive collection of drivers and extractors including hex, Torx, cross, flat, square and sleeve screwdrivers; Easyout extractors; trephines and trephine connecting handles; alloy drills; screw removal clamps and forceps; awl; sharp hook; osteotome; sterilization tray.
• Included instruments cover multiple screw diameters and head types (examples: Hex SW1.5–SW8.0, Torx T4–T30, Ø‑specific Torx and sleeve drivers, cross drivers 0.5/Ø2.5 and 0.5/Ø3.5).
• Drills: alloy drills Ø4.0 and Ø6.0 included.
• Trephines: Ø1.5, Ø2.0, Ø2.7 and trephine assemblies for Ø3.5/Ø4.0, Ø4.5/Ø5.0, Ø6.5.
• Compliance / standards: manufactured from medical-grade materials; produced under CE MDR and FDA requirements.
• Packaging: delivered as a complete instrument set in a sterilization tray (reference XT01003).
